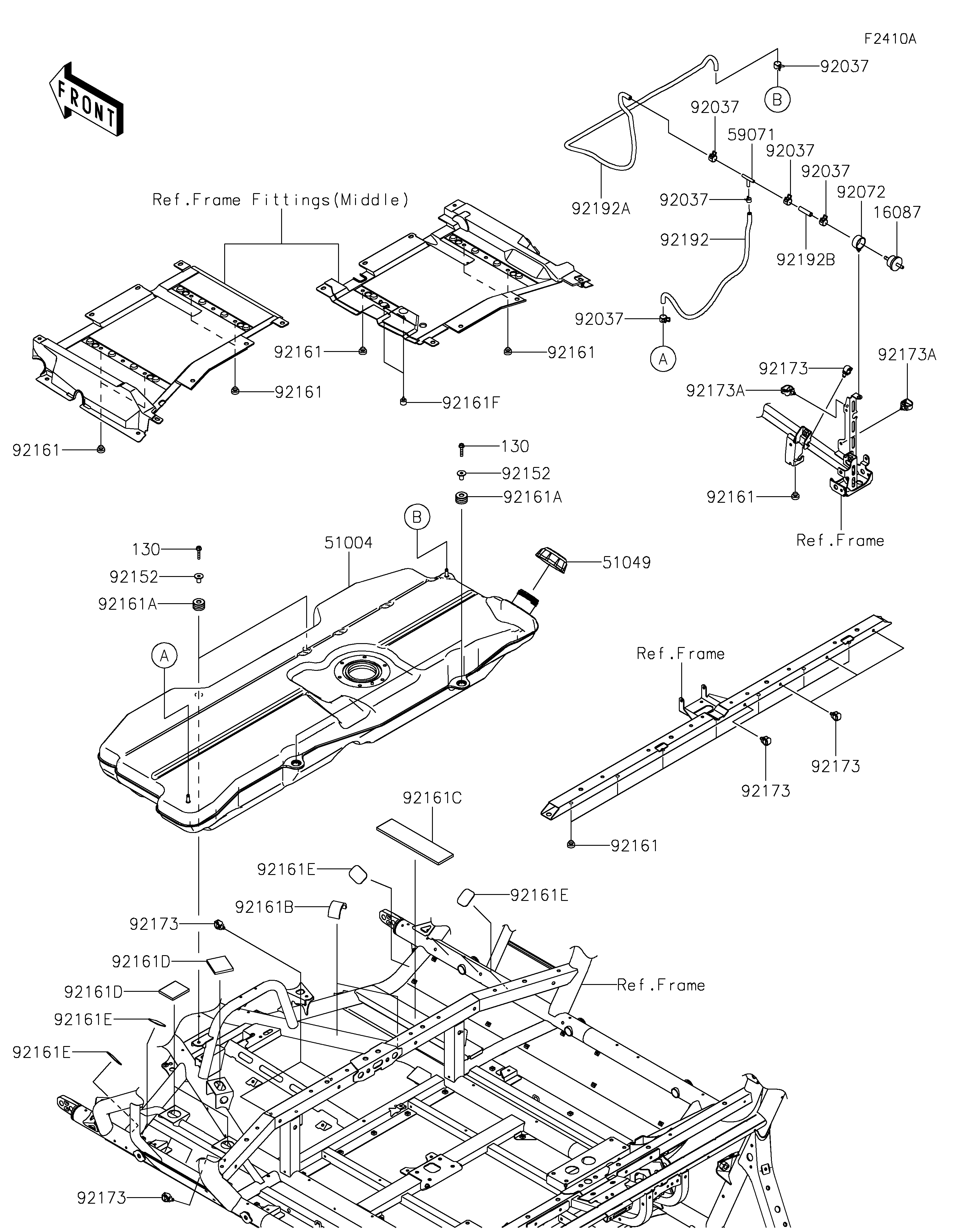

2026 TERYX®5 H2 DELUXE eS - Fuel Tank(CA)
16087
51004
51049
59071
92037
92037
92037
92037
92037
92037
92072
92152
92152
92161
92161
92161
92161
92161
92161
92161A
92161A
92161B
92161C
92161D
92161D
92161E
92161E
92161E
92161E
92161F
92173
92173
92173
92173
92173
92173A
92173A
92192
92192A
92192B
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| VALVE-CHECK | 16087 | 16087-0011 | 1 | CA | |
| TANK-FUEL | 51004 | 51004-0716 | 1 | CA | |
| CAP-TANK,FUEL | 51049 | 51049-0718 | 1 | CA | |
| JOINT | 59071 | 59071-3705 | 1 | CA | |
| CLAMP | 92037 | 92037-2113 | 6 | CA | |
| BAND | 92072 | 92072-0852 | 1 | CA | |
| COLLAR,6.8X10X18.1 | 92152 | 92152-1867 | 4 | CA | |
| DAMPER | 92161 | 92161-0046 | 15 | CA 1 | |
| DAMPER,TANK | 92161A | 92161-2178 | 4 | CA | |
| DAMPER,TANK FRAME PIPE | 92161B | 92161-2179 | 2 | CA | |
| DAMPER,TANK LOWER | 92161C | 92161-2253 | 1 | CA | |
| DAMPER,60X50X6.35 | 92161D | 92161-2587 | 3 | CA | |
| DAMPER,45X35X1.5 | 92161E | 92161-2600 | 8 | CA | |
| DAMPER,FUEL PUMP | 92161F | 92161-2775 | 2 | CA | |
| CLAMP,12MM DIA. | 92173 | 92173-0736 | 8 | CA | |
| CLAMP | 92173A | 92173-0861 | 2 | CA | |
| TUBE,BREATHER,LH | 92192 | 92192-2771 | 1 | CA | |
| TUBE,BREATHER,RH | 92192A | 92192-2772 | 1 | CA | |
| TUBE,5X10.4X40 | 92192B | 92192-2773 | 1 | CA | |
| BOLT-FLANGED,6X30 | 130 | 130BA0630 | 4 | CA |
| VALVE-CHECK | |
| REF # | 16087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TANK-FUEL | |
| REF # | 51004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CAP-TANK,FUEL | |
| REF # | 51049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| JOINT | |
| REF # | 59071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | CA |
| REMARKS | |
| BAND | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| COLLAR,6.8X10X18.1 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CA |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 15 |
| DESTINATION | CA 1 |
| REMARKS | |
| DAMPER,TANK | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CA |
| REMARKS | |
| DAMPER,TANK FRAME PIPE | |
| REF # | 92161B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| DAMPER,TANK LOWER | |
| REF # | 92161C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| DAMPER,60X50X6.35 | |
| REF # | 92161D |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | CA |
| REMARKS | |
| DAMPER,45X35X1.5 | |
| REF # | 92161E |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | CA |
| REMARKS | |
| DAMPER,FUEL PUMP | |
| REF # | 92161F |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,12MM DIA. | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92173A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,BREATHER,LH | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,BREATHER,RH | |
| REF # | 92192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,5X10.4X40 | |
| REF # | 92192B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BOLT-FLANGED,6X30 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CA |
| REMARKS | |
