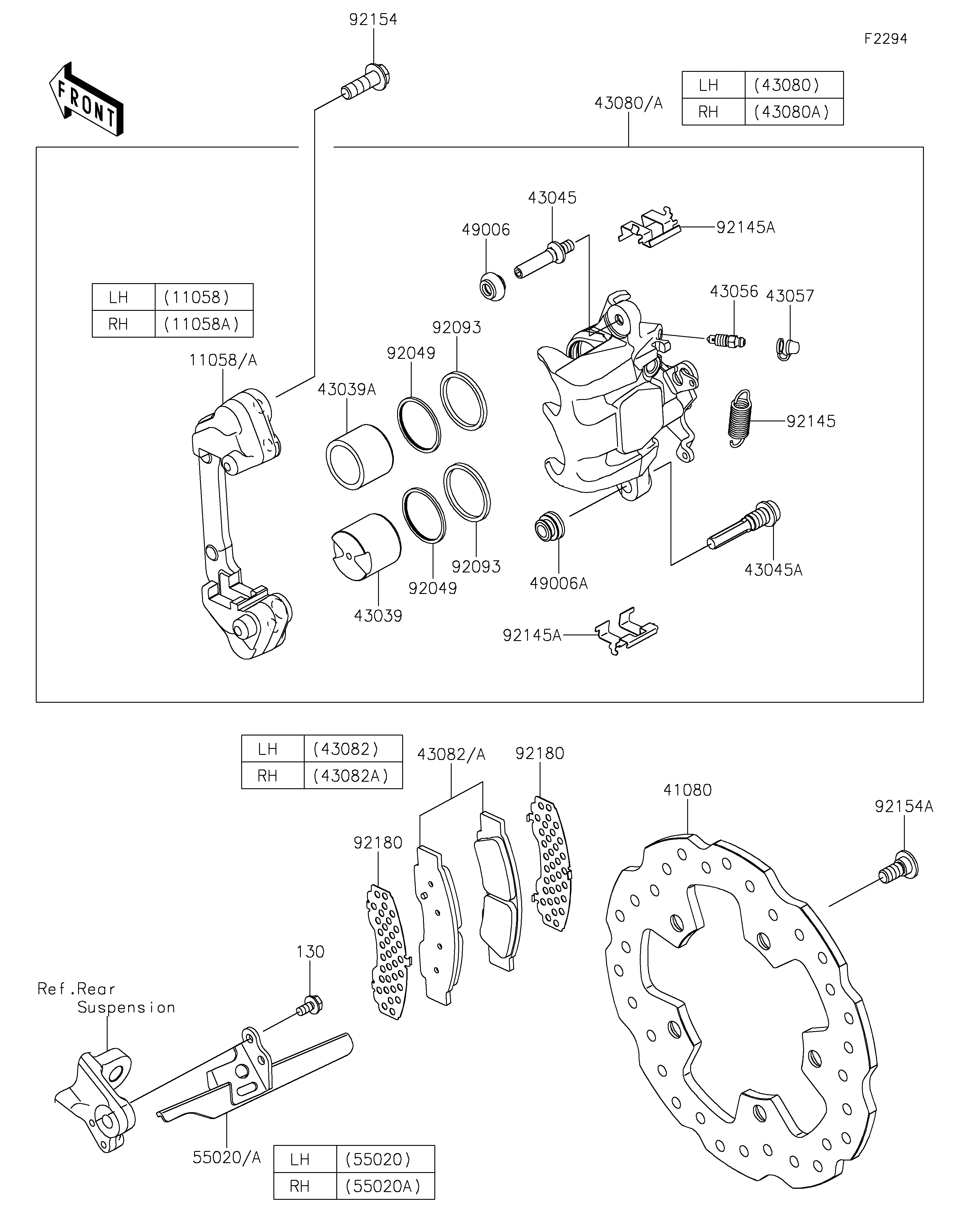

2026 TERYX®5 H2 DELUXE eS - Rear Brake

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
41080
43039
43039A
43045
43045A
43056
43057
43080
43080A
43082
43082A
49006
49006A
55020
55020A
92049
92049
92093
92093
92145
92145A
92145A
92154
92154A
92180
92180
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RR,LH 11058 11058-4483 1
BRACKET,RR,RH 11058A 11058-4484 1
DISC,BRAKE 41080 41080-0789 2
PISTON-BRAKE 43039 43039-0022 2
PISTON-BRAKE 43039A 43039-0032 2
SHAFT-CALIPER 43045 43045-0017 2
SHAFT-CALIPER 43045A 43045-0018 2
BREATHER-BRAKE 43056 43056-0055 2
CAP-BREATHER 43057 43057-0552 2
CALIPER-SUB-ASSY,RR,LH 43080 43080-0274 1
CALIPER-SUB-ASSY,RR,RH 43080A 43080-0275 1
PAD-ASSY-BRAKE 43082 43082-0237 1
PAD-ASSY-BRAKE 43082A 43082-0238 1
BOOT 49006 49006-0566 2
BOOT 49006A 49006-0624 2
GUARD,RR-CALIPER,LH 55020 55020-2268 1
GUARD,RR-CALIPER,RH 55020A 55020-2269 1
SEAL-OIL 92049 92049-0830 4
SEAL 92093 92093-0743 4
SPRING,RETURN,47MM 92145 92145-1690 2
SPRING 92145A 92145-2488 4
BOLT,FLANGED,10X30 92154 92154-0543 4
BOLT,SOCKET,10X23 92154A 92154-0713 10
SHIM 92180 92180-1719 4
BOLT-FLANGED,6X12 130 130CA0612 4
