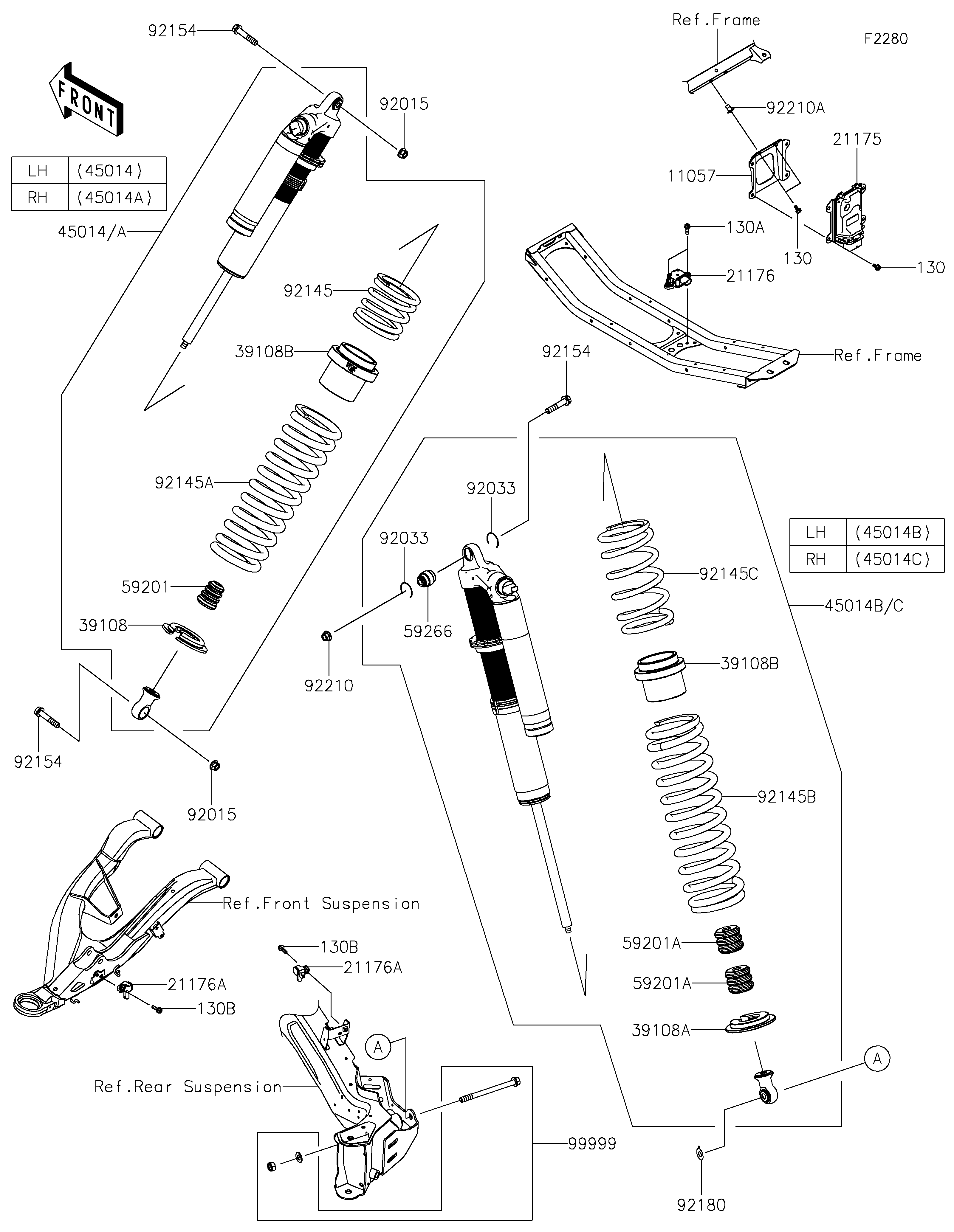

2026 TERYX®5 H2 DELUXE eS - Shock Absorber(s)

DOWNLOAD PDF
SELECT A NEW PART
11057
21175
21176
21176A
21176A
39108
39108A
39108B
39108B
45014
45014A
45014B
45014C
59201
59201A
59201A
59266
92015
92015
92033
92033
92145
92145A
92145B
92145C
92154
92154
92154
92180
92210
92210A
99999
130
130
130A
130B
130B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SDC-ECU 11057 11057-7671 1
CONTROL UNIT-ELECTRONIC,SDC 21175 21175-2135 1
SENSOR,IMU 21176 21176-1227 1
SENSOR,ACCELERATION 21176A 21176-1241 4
RETAINER-SPRING 39108 39108-0021 2
RETAINER-SPRING 39108A 39108-0022 2
RETAINER-SPRING 39108B 39108-0024 4
SHOCKABSORBER,FR,LH,L.GREEN 45014 45014-0905-66G 1
SHOCKABSORBER,FR,RH,L.GREEN 45014A 45014-0906-66G 1
SHOCKABSORBER,RR,LH,L.GREEN 45014B 45014-0907-66G 1
SHOCKABSORBER,RR,RH,L.GREEN 45014C 45014-0908-66G 1
BUMPER 59201 59201-0018 2
BUMPER 59201A 59201-0019 4
JOINT-BALL 59266 59266-0846 2
NUT,LOCK,FLANGED,12MM 92015 92015-1433 4
RING-SNAP 92033 92033-0892 4
SPRING,TENDER,L.GREEN 92145 92145-2509-66G 2
SPRING,MAIN,L.GREEN 92145A 92145-2510-66G 2
SPRING,MAIN,L.GREEN 92145B 92145-2512-66G 2
SPRING,TENDER,L.GREEN 92145C 92145-2513-66G 2
BOLT,FLANGED,12X60 92154 92154-7478 6
SHIM 92180 92180-1763 2
NUT,LOCK,FLANGED,12MM 92210 92210-0110 2
NUT,LARGE FLANGE,6MM,L=16.5 92210A 92210-1623 2
KIT,RR SHOCK-TRAIL BOLT 99999 99999-0988 2
BOLT-FLANGED,6X12 130 130BA0612 6
BOLT-FLANGED,6X18 130A 130BA0618 2
BOLT-FLANGED,6X20 130B 130BA0620 4
