Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
14094
35038
35038A
39350
39350A
39350B
39350C
55020
92009
92009
92009
92009
92009
92009
92009
92009
92015
92015
92015
92015
92015
92015
92015
92015
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92066
92066
92072
92072
92152
92152
92152
92152
92152
92152
92152
92152
92154
92154
92154
92154
92154
92154
92154
92154

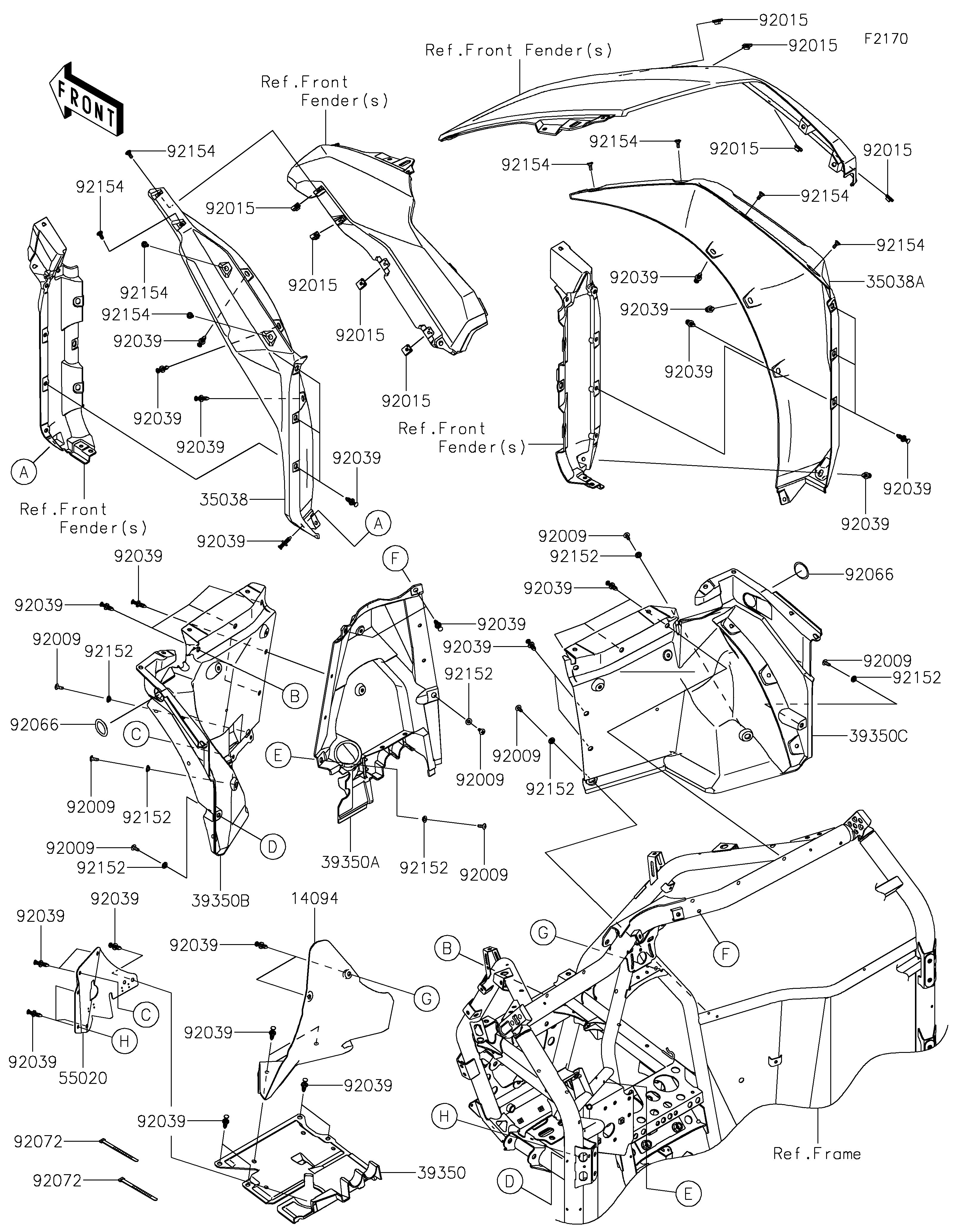

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,FR | 14094 | 14094-0413 | 1 | ||
| FENDER-FRONT,FLARE,LH | 35038 | 35038-0062 | 1 | ||
| FENDER-FRONT,FLARE,RH | 35038A | 35038-0063 | 1 | ||
| PANEL,FR,LWR | 39350 | 39350-0018 | 1 | ||
| PANEL,FR,CNT | 39350A | 39350-0019 | 1 | ||
| PANEL,FR,LH | 39350B | 39350-0020 | 1 | ||
| PANEL,FR,RH | 39350C | 39350-0021 | 1 | ||
| GUARD,FR PANEL | 55020 | 55020-2504 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 8 | ||
| NUT,CLAMP,6MM | 92015 | 92015-1678 | 8 | ||
| RIVET | 92039 | 92039-0865 | 40 | ||
| PLUG,FR PANEL | 92066 | 92066-1598 | 2 | ||
| BAND,L=123 | 92072 | 92072-030 | 2 | ||
| COLLAR,6.3X9.5X4.1 | 92152 | 92152-1571 | 8 | ||
| BOLT | 92154 | 92154-2474 | 8 |
| COVER,FR | |
| REF # | 14094 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-FRONT,FLARE,LH | |
| REF # | 35038 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-FRONT,FLARE,RH | |
| REF # | 35038A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL,FR,LWR | |
| REF # | 39350 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL,FR,CNT | |
| REF # | 39350A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL,FR,LH | |
| REF # | 39350B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL,FR,RH | |
| REF # | 39350C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,FR PANEL | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,CLAMP,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 40 |
| DESTINATION | |
| REMARKS | |
| PLUG,FR PANEL | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND,L=123 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.3X9.5X4.1 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
