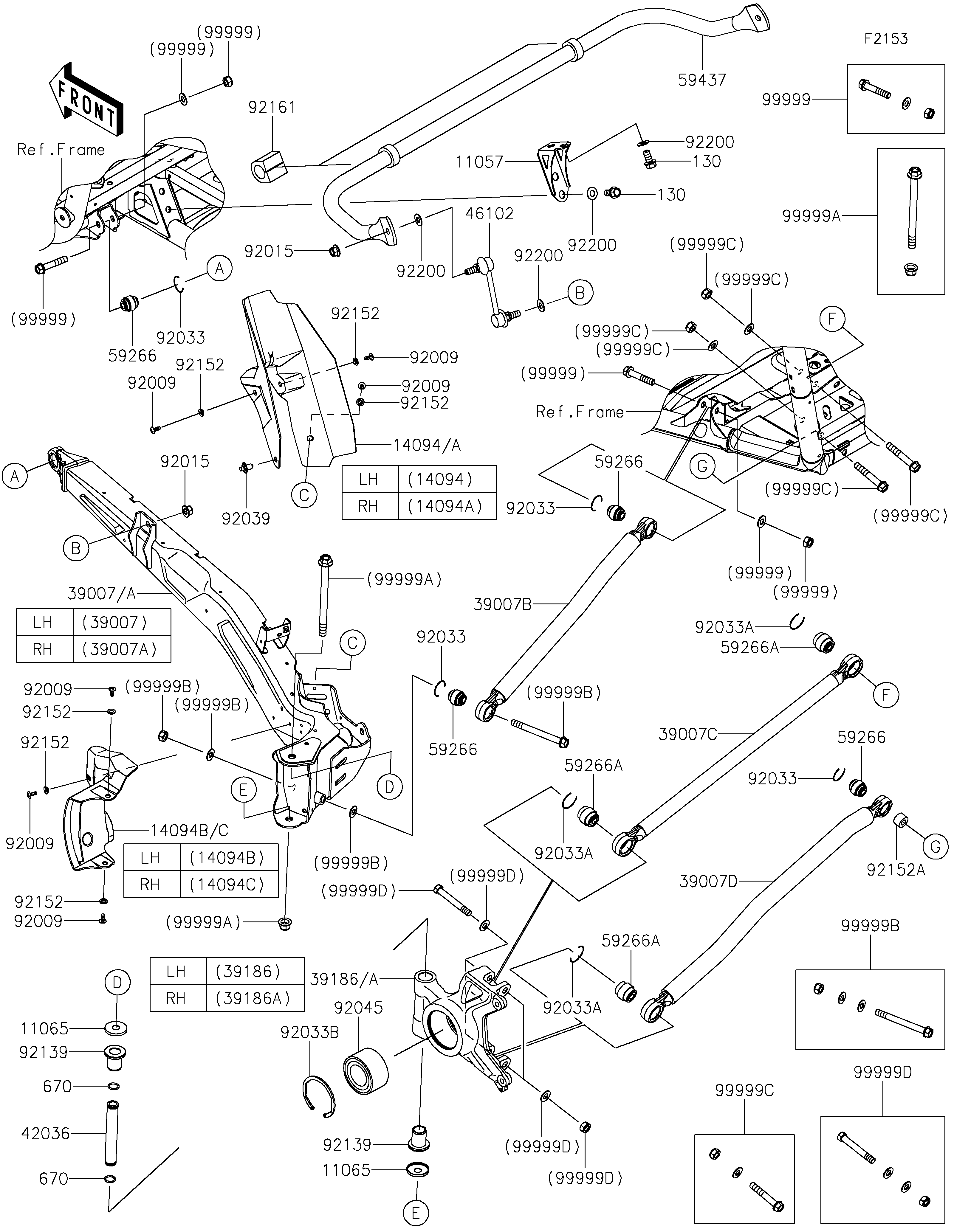

2026 TERYX®5 H2 DELUXE eS - Rear Suspension

DOWNLOAD PDF
SELECT A NEW PART
11057
11065
11065
14094
14094A
14094B
14094C
39007
39007A
39007B
39007C
39007D
39186
39186A
42036
46102
59266
59266
59266
59266
59266A
59266A
59266A
59437
92009
92009
92009
92009
92009
92009
92015
92015
92033
92033
92033
92033
92033A
92033A
92033A
92033B
92039
92045
92139
92139
92152
92152
92152
92152
92152
92152
92152A
92161
92200
92200
92200
92200
99999
99999A
99999B
99999C
99999D
130
130
670
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-7670 2
CAP 11065 11065-1521 4
COVER,RR SHOCK,LH 14094 14094-0187 1
COVER,RR SHOCK,RH 14094A 14094-0188 1
COVER,TRAILING ARM,LH 14094B 14094-0189 1
COVER,TRAILING ARM,RH 14094C 14094-0190 1
ARM-SUSP,TRAILING,LH,P.L.GREEN 39007 39007-0520-66C 1
ARM-SUSP,TRAILING,RH,P.L.GREEN 39007A 39007-0521-66C 1
ARM-SUSP,RR CONTROL,FR,GREEN 39007B 39007-0522-66C 2
ARM-SUSP,RR CONTROL,UPP,GREEN 39007C 39007-0523-66C 2
ARM-SUSP,RR CONTROL,LWR,GREEN 39007D 39007-0560-66C 2
KNUCKLE,RR,LH 39186 39186-0355 1
KNUCKLE,RR,RH 39186A 39186-0356 1
SLEEVE,14.1X22X147 42036 42036-0926 2
ROD,RR STABILIZER 46102 46102-0691 2
JOINT-BALL 59266 59266-0747 8
JOINT-BALL 59266A 59266-0748 6
STABILIZER,RR 59437 59437-0035 1
SCREW,TAPPING,6X16 92009 92009-1166 12
NUT,LOCK,FLANGED,12MM 92015 92015-1433 4
RING-SNAP 92033 92033-0802 8
RING-SNAP 92033A 92033-0803 6
RING-SNAP,76.5MM 92033B 92033-0879 2
RIVET 92039 92039-0086 2
BEARING-BALL,45X84X45 92045 92045-1478 2
BUSHING 92139 92139-1298 4
COLLAR,6.3X9.5X4.1 92152 92152-1571 12
COLLAR,12.2X25X15.3 92152A 92152-4061 2
DAMPER 92161 92161-2414 2
WASHER,12.1X25X1.6 92200 92200-0455 12
KIT,TRAILING-FRAME BOLT 99999 99999-0983 4
KIT,TRAILING-KNUCKLE BOLT 99999A 99999-0984 2
KIT,CONTROL ARM-TRAIL,BOLT 99999B 99999-0985 2
KIT,CONTROL ARM-FRAME,BOLT 99999C 99999-0986 4
KIT,CONTROL ARM-KNUCKLE,BOLT 99999D 99999-0987 4
BOLT-FLANGED,12X25 130 130CA1225 8
O RING,18MM 670 670B2018 4
