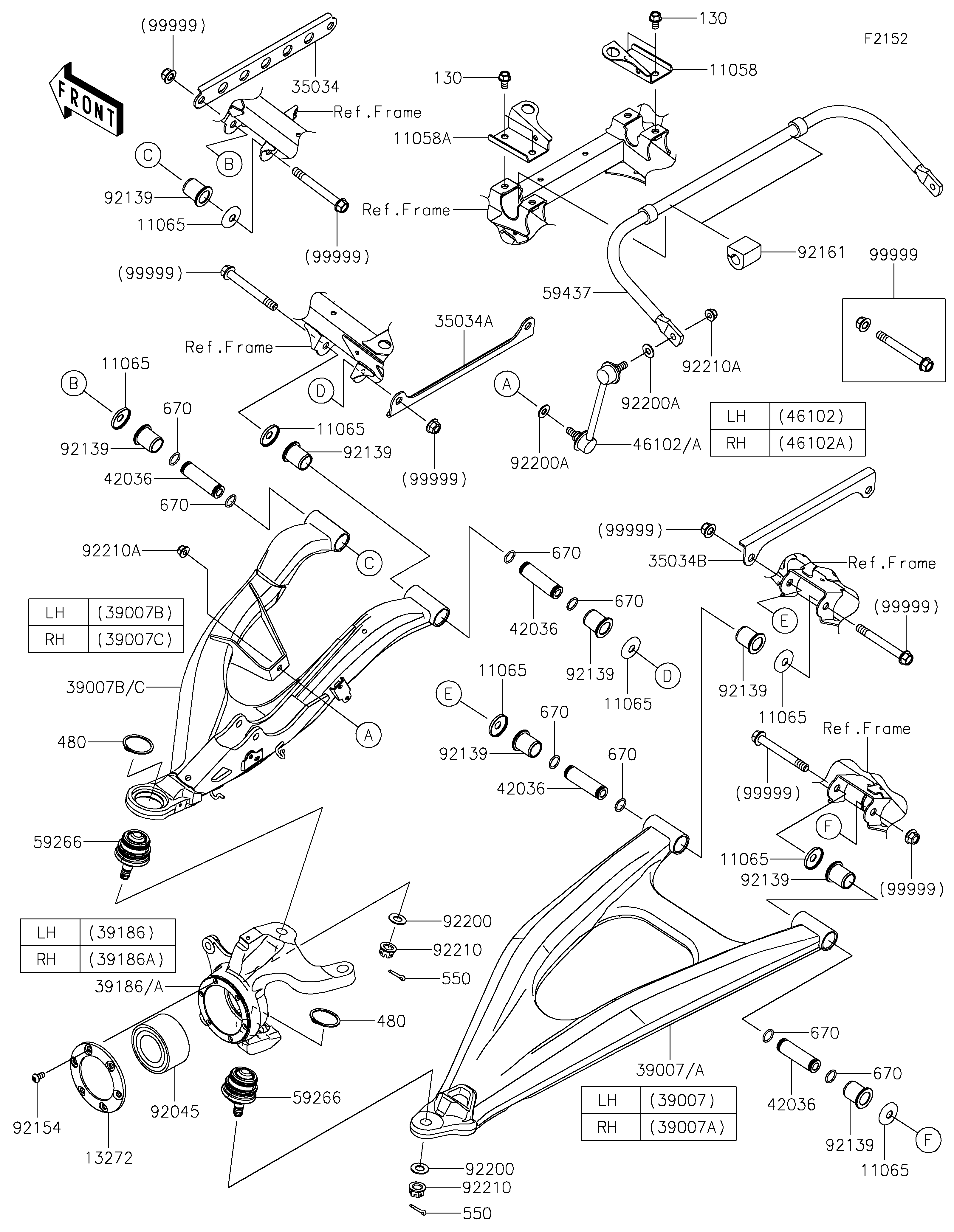

2026 TERYX®5 H2 DELUXE eS - Front Suspension

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
11065
11065
11065
11065
11065
11065
11065
11065
13272
35034
35034A
35034B
39007
39007A
39007B
39007C
39186
39186A
42036
42036
42036
42036
46102
46102A
59266
59266
59437
92045
92139
92139
92139
92139
92139
92139
92139
92139
92154
92161
92200
92200
92200A
92200A
92210
92210
92210A
92210A
99999
130
130
480
480
550
550
670
670
670
670
670
670
670
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FR STABILIZER,RH 11058 11058-3968 1
BRACKET,FR STABILIZER,LH 11058A 11058-3969 1
CAP,ARM 11065 11065-1522 16
PLATE,FR KNUCKLE 13272 13272-7279 2
REINFORCE,FR UPPER ARM,FR 35034 35034-0623 1
REINFORCE,FR UPPER ARM,RR 35034A 35034-0624 1
REINFORCE,FR LOWER ARM,FR 35034B 35034-0626 1
ARM-SUSP,FR,LWR,LH,P.L.GREEN 39007 39007-0518-66C 1
ARM-SUSP,FR,LWR,RH,P.L.GREEN 39007A 39007-0519-66C 1
ARM-SUSP,FR,UPP,LH,P.L.GREEN 39007B 39007-0534-66C 1
ARM-SUSP,FR,UPP,RH,P.L.GREEN 39007C 39007-0535-66C 1
KNUCKLE,FR,LH 39186 39186-0353 1
KNUCKLE,FR,RH 39186A 39186-0354 1
SLEEVE,12.1X22X76 42036 42036-0836 8
ROD,STABILIZER,LH 46102 46102-0689 1
ROD,STABILIZER,RH 46102A 46102-0690 1
JOINT-BALL 59266 59266-0772 4
STABILIZER,FR 59437 59437-0034 1
BEARING-BALL,45X84X45 92045 92045-1478 2
BUSHING 92139 92139-0937 16
BOLT,TORX,8X16 92154 92154-7703 12
DAMPER 92161 92161-2413 2
WASHER,14.2X28X1.5 92200 92200-0217 4
WASHER,10.3X23X1.6 92200A 92200-0724 4
NUT,CASTLE,14MM 92210 92210-0104 4
NUT,LOCK,FLANGED,10MM 92210A 92210-1080 4
KIT,A-ARM FRAME BOLT 99999 99999-0982 8
BOLT-FLANGED,10X16 130 130CA1016 4
CIRCLIP 480 480J4500 4
PIN-COTTER,3.0X25 550 550AA3025 4
O RING,18MM 670 670B2018 16
