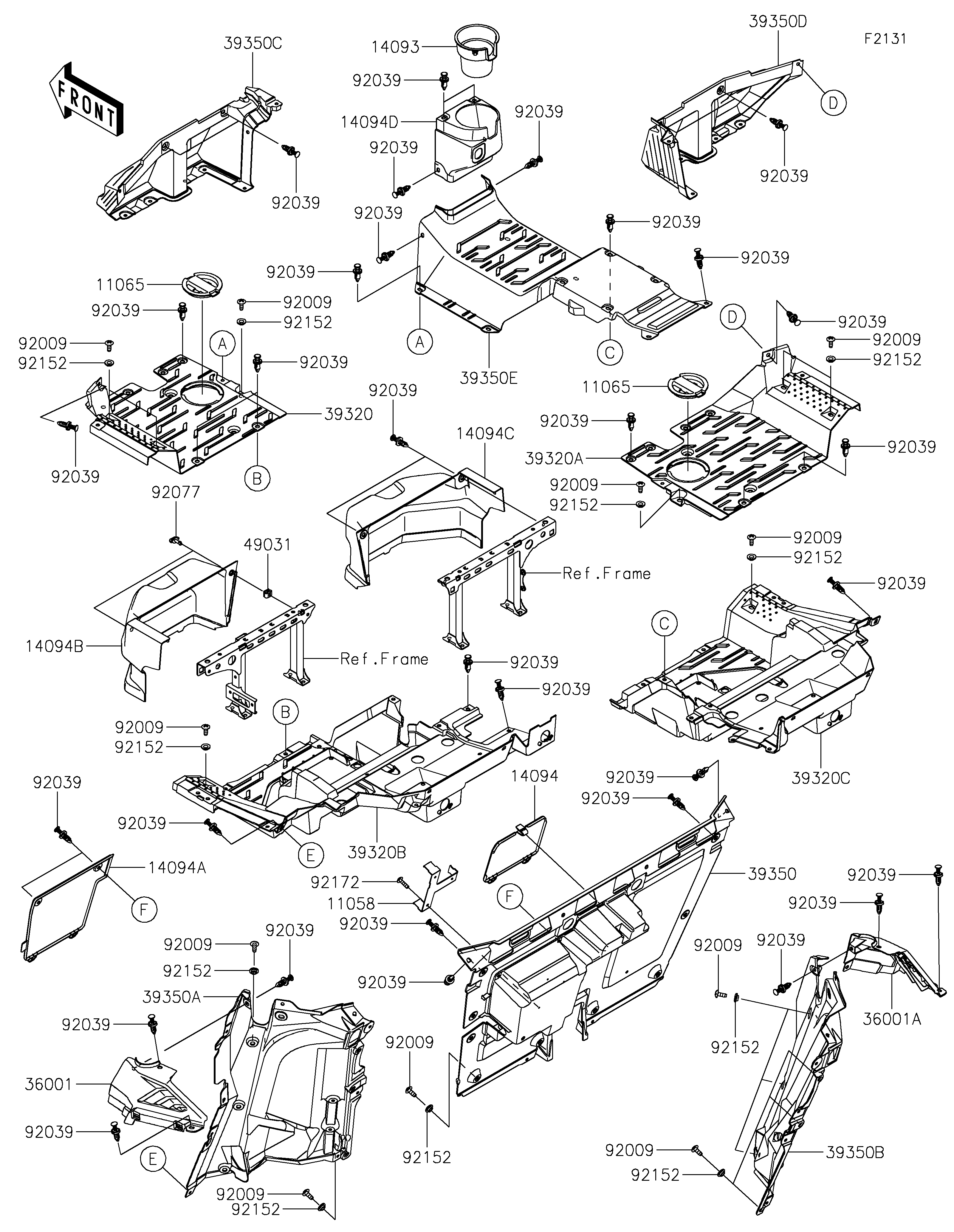

2026 TERYX®5 H2 DELUXE eS - Frame Fittings(Rear)
11058
11065
11065
14093
14094
14094A
14094B
14094C
14094D
36001
36001A
39320
39320A
39320B
39320C
39350
39350A
39350B
39350C
39350D
39350E
49031
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92077
92152
92152
92152
92152
92152
92152
92152
92152
92152
92152
92152
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,ECU | 11058 | 11058-2796 | 1 | ||
| CAP,FLOOR | 11065 | 11065-1423 | 2 | ||
| COVER,CUP HOLDER | 14093 | 14093-1329 | 1 | ||
| COVER,RELAY | 14094 | 14094-0198 | 1 | ||
| COVER,ECU | 14094A | 14094-0199 | 1 | ||
| COVER,RR SEAT UNDER,LH | 14094B | 14094-0202 | 1 | ||
| COVER,RR SEAT UNDER,RH | 14094C | 14094-0203 | 1 | ||
| COVER,RR CONSOLE | 14094D | 14094-0208 | 1 | ||
| COVER-SIDE,C-PILLAR,LH | 36001 | 36001-0784 | 1 | ||
| COVER-SIDE,C-PILLAR,RH | 36001A | 36001-0785 | 1 | ||
| FLOOR,PANEL,RR,LH,FR | 39320 | 39320-0016 | 1 | ||
| FLOOR,PANEL,RR,RH,FR | 39320A | 39320-0017 | 1 | ||
| FLOOR,PANEL,RR,LH,RR | 39320B | 39320-0018 | 1 | ||
| FLOOR,PANEL,RR,RH,RR | 39320C | 39320-0026 | 1 | ||
| PANEL,BACK,CNT | 39350 | 39350-0022 | 1 | ||
| PANEL,BACK,LH | 39350A | 39350-0023 | 1 | ||
| PANEL,BACK,RH | 39350B | 39350-0024 | 1 | ||
| PANEL,FLOOR,RR,LH | 39350C | 39350-0025 | 1 | ||
| PANEL,FLOOR,RR,RH | 39350D | 39350-0026 | 1 | ||
| PANEL,RR CONSOLE | 39350E | 39350-0032 | 1 | ||
| LATCH | 49031 | 49031-0030 | 2 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 28 | ||
| RIVET | 92039 | 92039-0865 | 64 | ||
| KNOB | 92077 | 92077-0040 | 2 | ||
| COLLAR,6.3X9.5X4.1 | 92152 | 92152-1571 | 28 | ||
| SCREW | 92172 | 92172-1072 | 3 |
