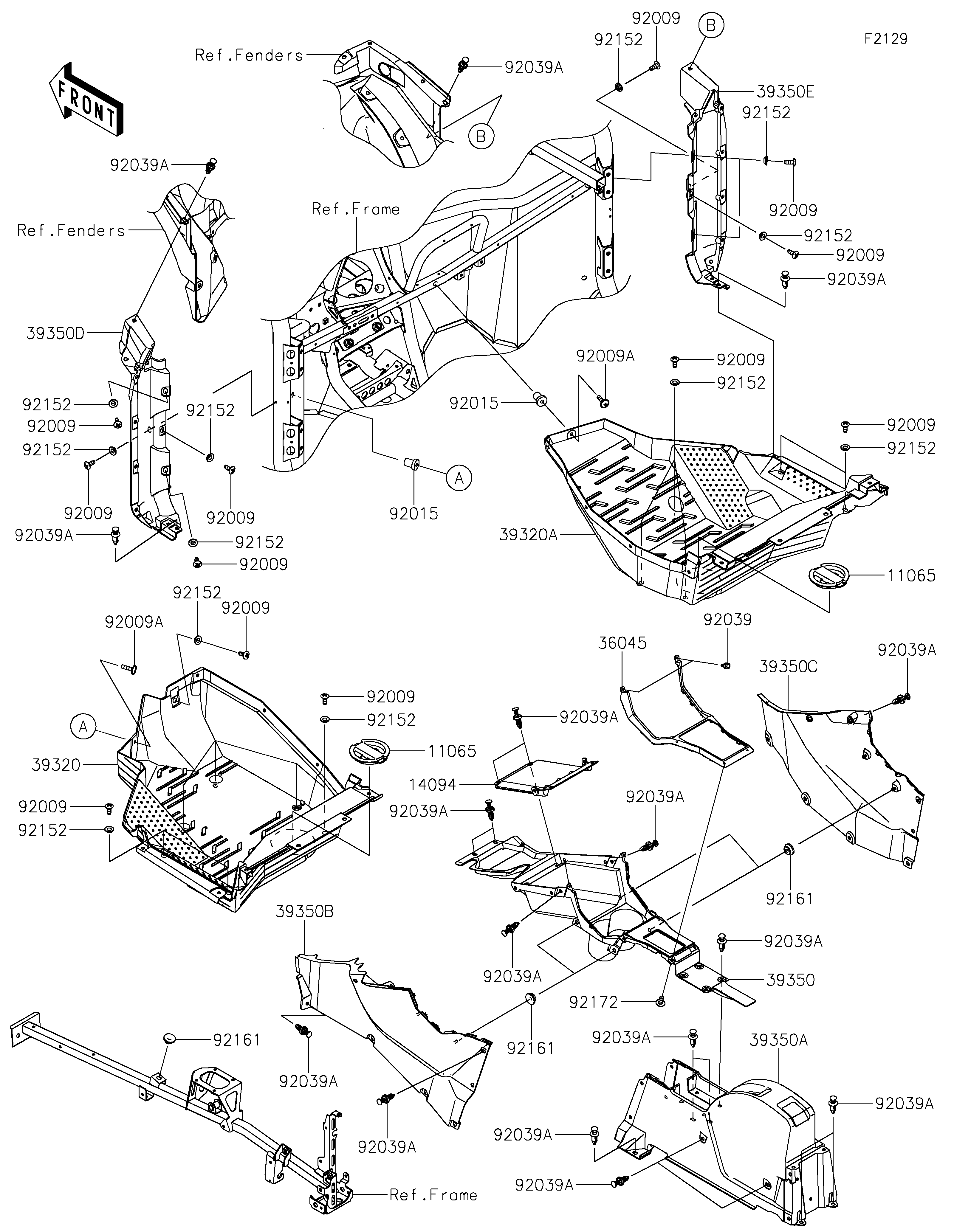

2026 TERYX®5 H2 DELUXE eS - Frame Fittings(Front)
11065
11065
14094
36045
39320
39320A
39350
39350A
39350B
39350C
39350D
39350E
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009A
92009A
92015
92015
92039
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92152
92152
92152
92152
92152
92152
92152
92152
92152
92152
92152
92152
92161
92161
92161
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,FLOOR | 11065 | 11065-1423 | 2 | ||
| COVER,FR CONSOLE | 14094 | 14094-0200 | 1 | ||
| PANEL-DECORATION,FR CONSOLE,GR | 36045 | 36045-0004-777 | 1 | ||
| FLOOR,PANEL,FR,LH | 39320 | 39320-0014 | 1 | ||
| FLOOR,PANEL,FR,RH | 39320A | 39320-0015 | 1 | ||
| PANEL,FR CONSOLE,FR | 39350 | 39350-0027 | 1 | ||
| PANEL,FR CONSOLE,RR | 39350A | 39350-0028 | 1 | ||
| PANEL,FR CONSOLE,LH | 39350B | 39350-0029 | 1 | ||
| PANEL,FR CONSOLE,RH | 39350C | 39350-0030 | 1 | ||
| PANEL,A-PILLAR,LH | 39350D | 39350-0036 | 1 | ||
| PANEL,A-PILLAR,RH | 39350E | 39350-0037 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 20 | ||
| SCREW,6X22,BLACK | 92009A | 92009-1256 | 2 | ||
| NUT,RUBBER,6MM | 92015 | 92015-1692 | 2 | ||
| RIVET | 92039 | 92039-0046 | 2 | ||
| RIVET | 92039A | 92039-0865 | 38 | ||
| COLLAR,6.3X9.5X4.1 | 92152 | 92152-1571 | 20 | ||
| DAMPER | 92161 | 92161-1531 | 5 | ||
| SCREW,TAPPING,5X10 | 92172 | 92172-0262 | 4 |
| CAP,FLOOR | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,FR CONSOLE | |
| REF # | 14094 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL-DECORATION,FR CONSOLE,GR | |
| REF # | 36045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLOOR,PANEL,FR,LH | |
| REF # | 39320 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLOOR,PANEL,FR,RH | |
| REF # | 39320A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL,FR CONSOLE,FR | |
| REF # | 39350 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL,FR CONSOLE,RR | |
| REF # | 39350A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL,FR CONSOLE,LH | |
| REF # | 39350B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL,FR CONSOLE,RH | |
| REF # | 39350C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL,A-PILLAR,LH | |
| REF # | 39350D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL,A-PILLAR,RH | |
| REF # | 39350E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 20 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X22,BLACK | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,RUBBER,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039A |
|---|---|
| PART NUMBER | |
| QUANTITY | 38 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.3X9.5X4.1 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 20 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,5X10 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
