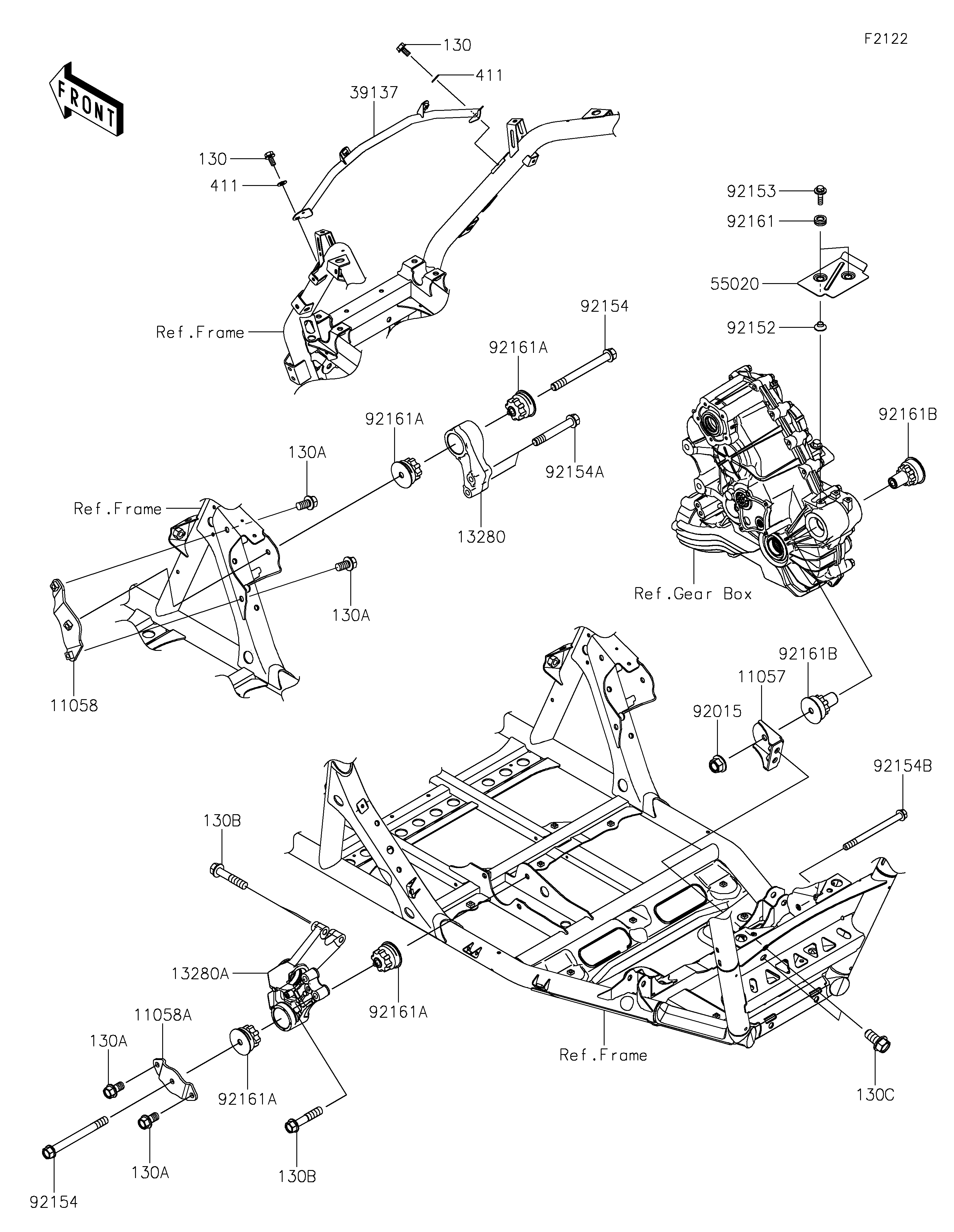

2026 TERYX®5 H2 DELUXE eS - Engine Mount

DOWNLOAD PDF
SELECT A NEW PART
11057
11058
11058A
13280
13280A
39137
55020
92015
92152
92153
92154
92154
92154A
92154B
92161
92161A
92161A
92161A
92161A
92161B
92161B
130
130
130A
130A
130A
130A
130B
130B
130C
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RR 11057 11057-2103 1
BRACKET,FR,RH 11058 11058-1679 1
BRACKET,FR,LH 11058A 11058-1680 1
HOLDER 13280 13280-1397 1
HOLDER,LH 13280A 13280-1407 1
STAY-COMP,FR 39137 39137-0783 1
GUARD 55020 55020-2555 1
NUT,LOCK,FLANGED,12MM 92015 92015-1433 1
COLLAR,6.3X8.3X7.2 92152 92152-1865 2
BOLT,FLANGED,6X22 92153 92153-0950 2
BOLT,FLANGED,10X105 92154 92154-1132 2
BOLT,FLANGED,10X70 92154A 92154-1541 2
BOLT,FLANGED,12X160 92154B 92154-3916 1
DAMPER 92161 92161-2510 2
DAMPER,FRONT ENGINE MOUNT 92161A 92161-2591 4
DAMPER,REAR ENGINE MOUNT 92161B 92161-2592 2
BOLT-FLANGED,6X12 130 130BA0612 2
BOLT-FLANGED,10X18 130A 130CA1018 4
BOLT-FLANGED,10X50 130B 130CA1050 4
BOLT-FLANGED,12X25 130C 130CA1225 2
WASHER-PLAIN,6MM 411 411AA0600 2
