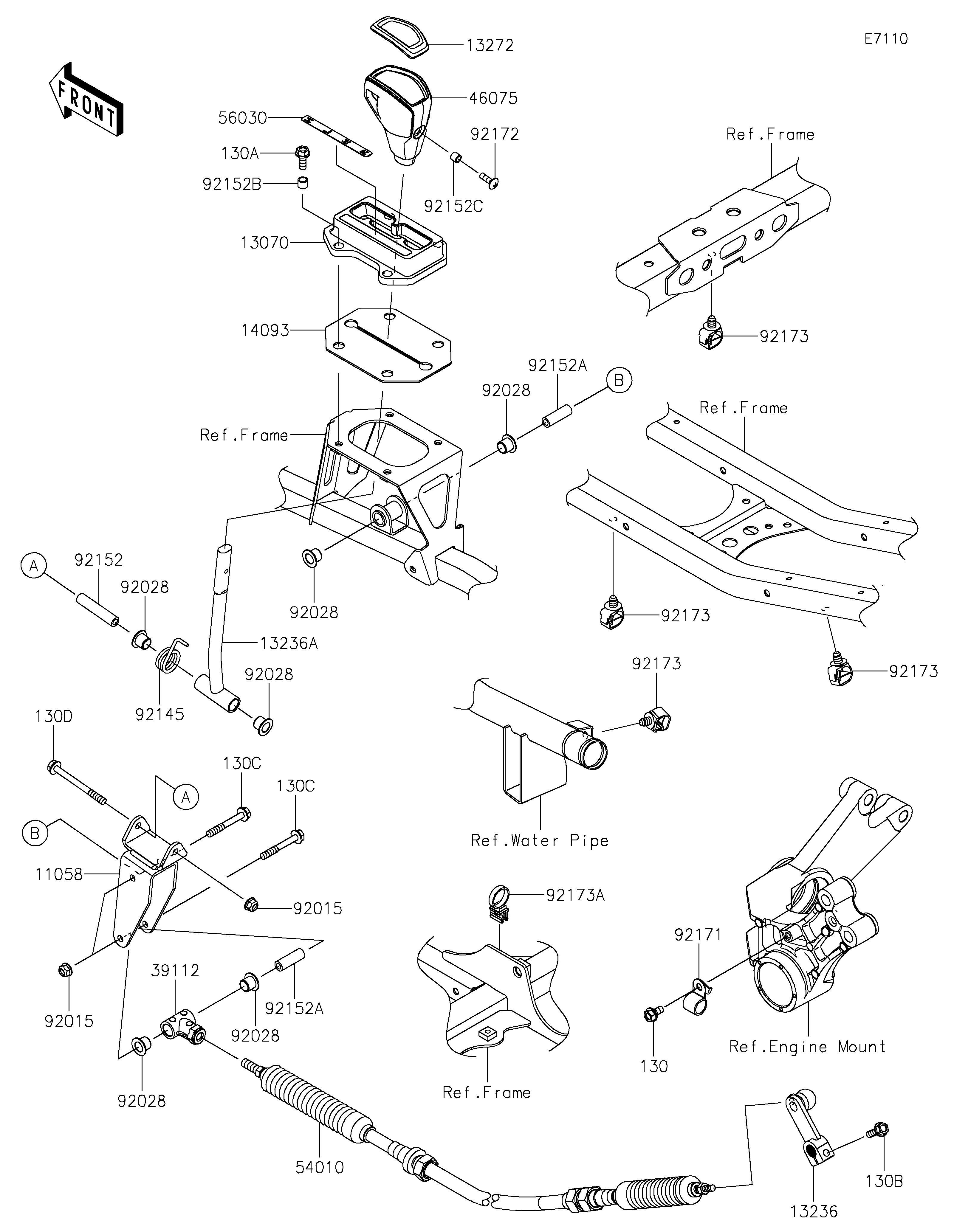

2026 TERYX®5 H2 DELUXE eS - Control

DOWNLOAD PDF
SELECT A NEW PART
11058
13070
13236
13236A
13272
14093
39112
46075
54010
56030
92015
92015
92028
92028
92028
92028
92028
92028
92145
92152
92152A
92152A
92152B
92152C
92171
92172
92173
92173
92173
92173
92173A
130
130A
130B
130C
130C
130D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LEVER 11058 11058-1920 1
GUIDE 13070 13070-0894 1
LEVER-COMP,CHANGE LEVER 13236 13236-0708 1
LEVER-COMP 13236A 13236-0870 1
PLATE,SHIFT GRIP,S.BLACK 13272 13272-7086-839 1
COVER,HEAT GUARD 14093 14093-1245 1
RODEND-TIE 39112 39112-0036 1
GRIP 46075 46075-0669 1
CABLE 54010 54010-0663 1
LABEL,POSITION 56030 56030-1421 1
NUT,LOCK,FLANGED,6MM 92015 92015-1675 3
BUSHING 92028 92028-1507 6
SPRING 92145 92145-1839 1
COLLAR,6.0X10X47 92152 92152-1517 1
COLLAR,6.0X10X30 92152A 92152-1518 2
COLLAR,6.8X9.2X8.8 92152B 92152-2863 4
COLLAR 92152C 92152-2939 1
CLAMP 92171 92171-1615 1
SCREW,5X16 92172 92172-0479 1
CLAMP,12MM DIA. 92173 92173-0736 4
CLAMP,EDGE CLIP CABLE,L=200 92173A 92173-1896 1
BOLT-FLANGED,6X12 130 130BA0612 1
BOLT-FLANGED,6X18 130A 130BA0618 4
BOLT-FLANGED,6X20 130B 130CA0620 1
BOLT-FLANGED,6X45 130C 130CA0645 2
BOLT-FLANGED,6X65 130D 130CA0665 1
