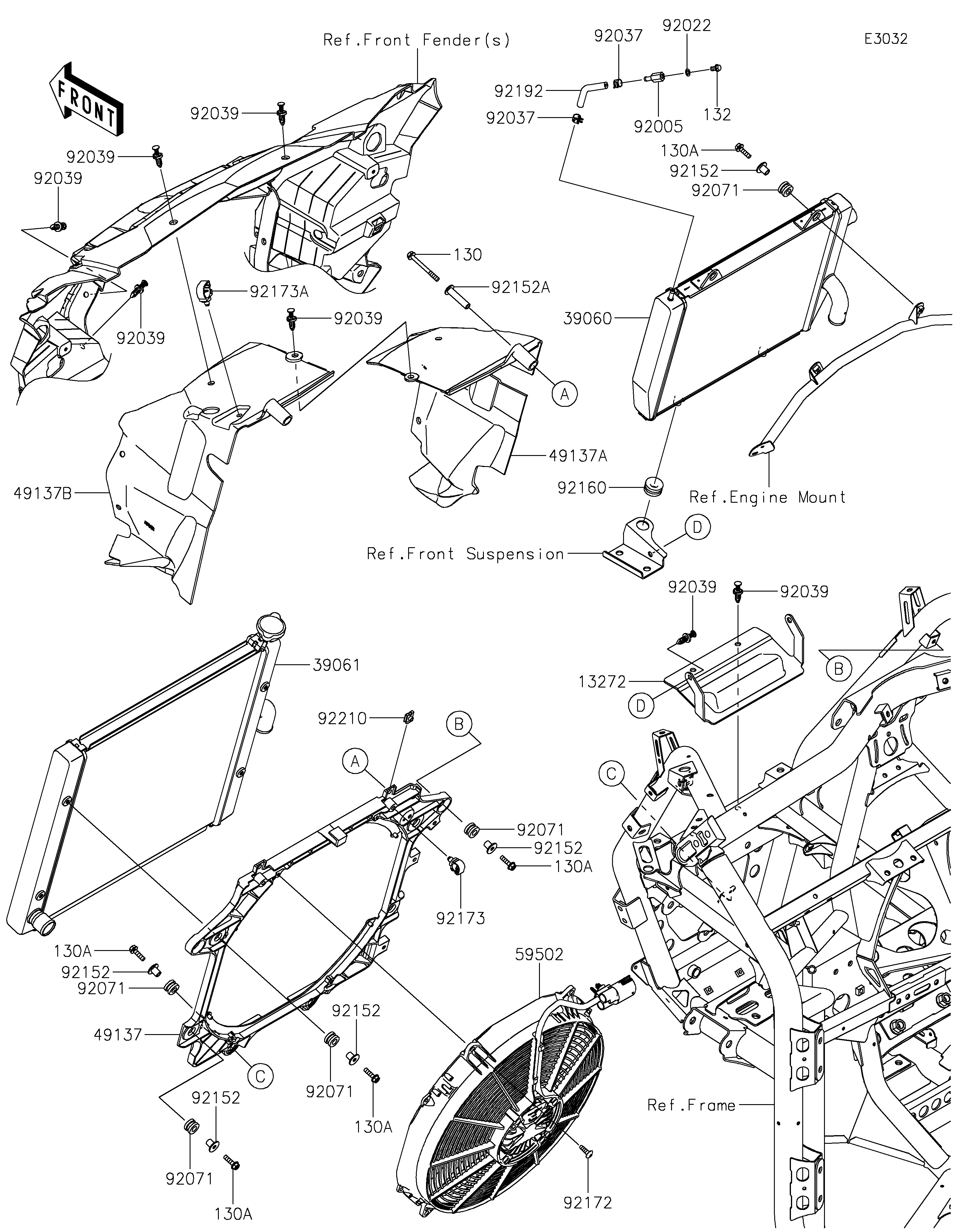

2026 TERYX®5 H2 DELUXE eS - Radiator

DOWNLOAD PDF
SELECT A NEW PART
13272
39060
39061
49137
49137A
49137B
59502
92005
92022
92037
92037
92039
92039
92039
92039
92039
92039
92039
92071
92071
92071
92071
92071
92152
92152
92152
92152
92152
92152A
92160
92172
92173
92173A
92192
92210
130
130A
130A
130A
130A
130A
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13272 13272-7317 1
RADIATOR,SUB 39060 39060-0785 1
RADIATOR-ASSY 39061 39061-0984 1
SHROUD,FAN 49137 49137-0003 1
SHROUD,RH 49137A 49137-0013 1
SHROUD,LH 49137B 49137-0014 1
FAN-ASSY 59502 59502-0657 1
FITTING 92005 92005-1595 1
WASHER,6.2X11X1 92022 92022-304 1
CLAMP,TUBE 92037 92037-1505 2
RIVET 92039 92039-0865 11
GROMMET 92071 92071-0842 10
COLLAR 92152 92152-3851 10
COLLAR,SHROUD 92152A 92152-3866 2
DAMPER 92160 92160-1007 2
SCREW,TAPPING,6X20 92172 92172-0488 4
CLAMP,12MM DIA. 92173 92173-0736 2
CLAMP 92173A 92173-0861 1
TUBE,4X10X78 92192 92192-2762 1
NUT 92210 92210-1323 2
BOLT-FLANGED,6X60 130 130BA0660 2
BOLT-FLANGED,6X22 130A 130CA0622 10
BOLT-FLANGED-SMALL,6X10 132 132BA0610 1
