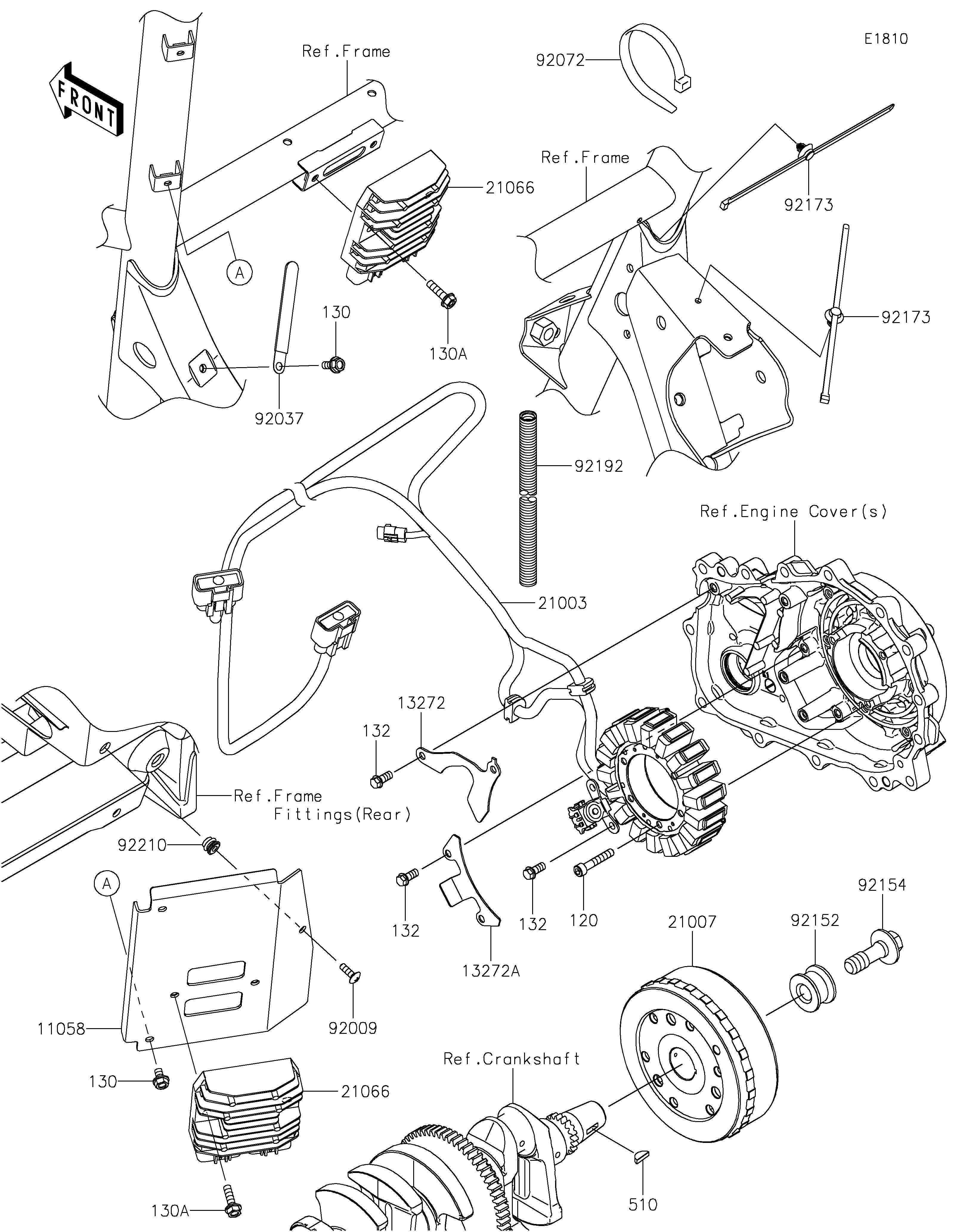

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11058
13272
13272A
21003
21007
21066
21066
92009
92037
92072
92152
92154
92173
92173
92192
92210
120
130
130
130A
130A
132
132
132
510
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,REGULATOR | 11058 | 11058-4056 | 1 | ||
| PLATE,LEAD WIRE | 13272 | 13272-4122 | 1 | ||
| PLATE,LEAD WIRE | 13272A | 13272-4123 | 1 | ||
| STATOR | 21003 | 21003-0232 | 1 | ||
| ROTOR | 21007 | 21007-0741 | 1 | ||
| REGULATOR-VOLTAGE | 21066 | 21066-0771 | 2 | ||
| SCREW,5X16 | 92009 | 92009-3797 | 1 | ||
| CLAMP | 92037 | 92037-1993 | 1 | ||
| BAND,L=202 | 92072 | 92072-1195 | 1 | ||
| COLLAR | 92152 | 92152-3816 | 1 | ||
| BOLT | 92154 | 92154-7265 | 1 | ||
| CLAMP | 92173 | 92173-2792 | 2 | ||
| TUBE,CONVOLUTED,10.7X14.1X140 | 92192 | 92192-2521 | 1 | ||
| NUT,WELL,5MM | 92210 | 92210-0370 | 1 | ||
| BOLT-SOCKET,6X35 | 120 | 120CA0635 | 3 | ||
| BOLT-FLANGED,6X10 | 130 | 130BA0610 | 3 | ||
| BOLT-FLANGED,6X22 | 130A | 130BA0622 | 4 | ||
| BOLT-FLANGED-SMALL,6X14 | 132 | 132BA0614 | 6 | ||
| KEY-WOODRUFF | 510 | 510A4200 | 1 |
