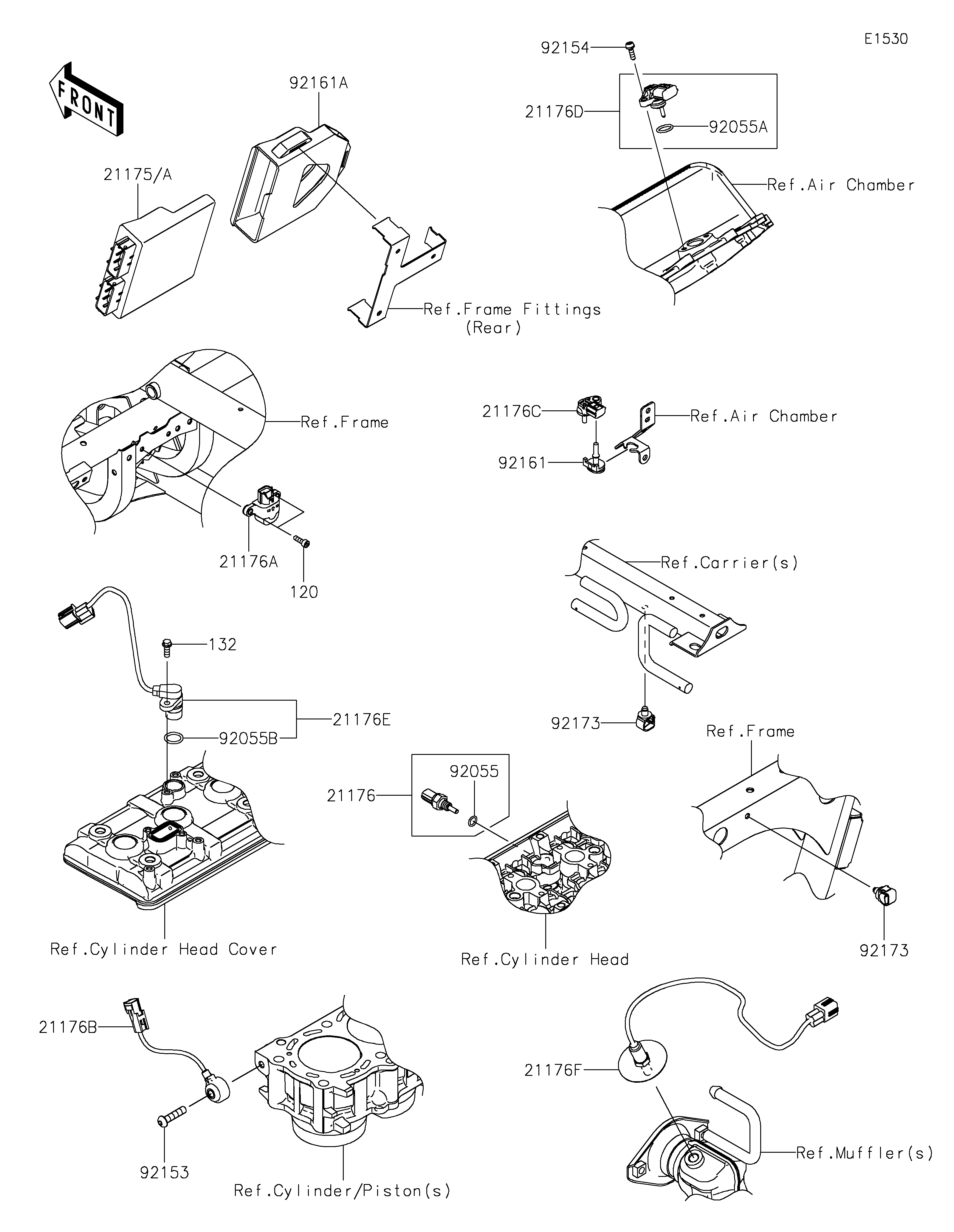

2026 TERYX®5 H2 DELUXE eS - Fuel Injection

DOWNLOAD PDF
SELECT A NEW PART
21175
21175A
21176
21176A
21176B
21176C
21176D
21176E
21176F
92055
92055A
92055B
92153
92154
92161
92161A
92173
92173
120
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CONTROL UNIT-ELECTRONIC 21175 21175-2136 1 CN,US
CONTROL UNIT-ELECTRONIC 21175A 21175-2137 1 CA
SENSOR,WATER TEMP 21176 21176-0009 1
SENSOR,VEHICLE-DOWN 21176A 21176-0026 1
SENSOR,KNOCK 21176B 21176-0788 1
SENSOR,PRESSURE 21176C 21176-0937 1
SENSOR,INTAKE TEMP&PRESSURE 21176D 21176-0982 1
SENSOR,CAM ANGLE 21176E 21176-1077 1
SENSOR,OXYGEN 21176F 21176-1234 1
RING-O,9.5X1.9 92055 92055-0016 1
RING-O 92055A 92055-0842 1
RING-O 92055B 92055-1639 1
BOLT,SOCKET,8X35 92153 92153-0419 1
BOLT,SOCKET,5X16 92154 92154-1449 2
DAMPER 92161 92161-0673 1
DAMPER,ECU 92161A 92161-2495 1
CLAMP,12MM DIA. 92173 92173-0736 2
BOLT-SOCKET,5X16 120 120CA0516 2
BOLT-FLANGED-SMALL,6X16 132 132BA0616 1
