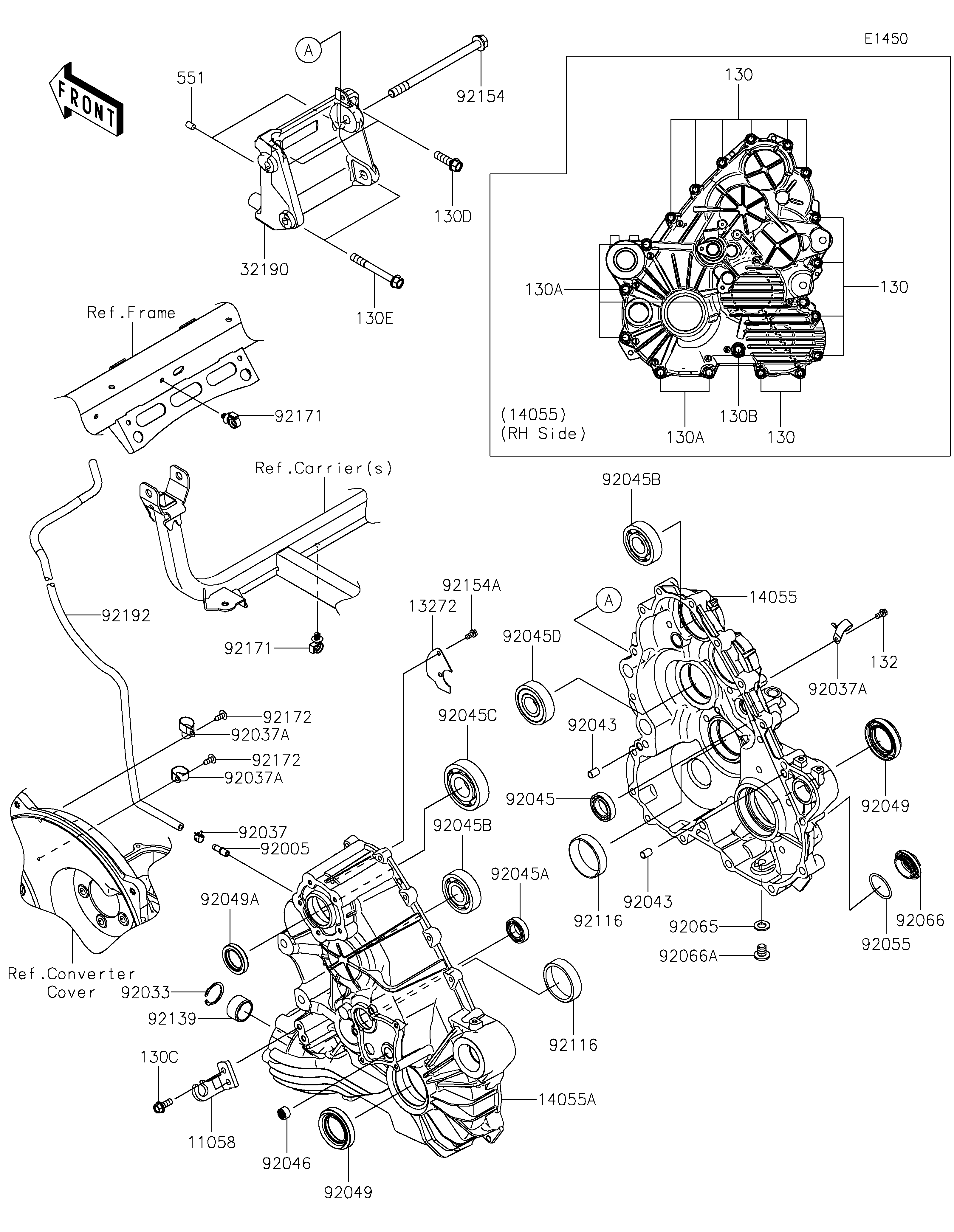

2026 TERYX®5 H2 DELUXE eS - Gear Box

DOWNLOAD PDF
SELECT A NEW PART
11058
13272
14055
14055A
32190
92005
92033
92037
92037A
92037A
92037A
92043
92043
92045
92045A
92045B
92045B
92045C
92045D
92046
92049
92049
92049A
92055
92065
92066
92066A
92116
92116
92139
92154
92154A
92171
92171
92172
92172
92192
130
130
130
130A
130A
130B
130C
130D
130E
132
551
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CABLE 11058 11058-0560 1
PLATE 13272 13272-4342 1
CASE-GEAR,RH 14055 14055-0676 1
CASE-GEAR,LH 14055A 14055-0677 1
BRACKET-ENGINE 32190 32190-0955 1
FITTING,BREATHER 92005 92005-1127 1
RING-SNAP 92033 92033-0856 1
CLAMP,TUBE 92037 92037-1505 1
CLAMP 92037A 92037-1993 3
PIN,DOWEL,10X14 92043 92043-1037 2
BEARING-BALL,#6905 92045 92045-036 1
BEARING-BALL,6904 92045A 92045-0705 1
BEARING-BALL,6305RSH2 92045B 92045-0899 2
BEARING-BALL 92045C 92045-0999 1
BEARING-BALL 92045D 92045-1458 1
BEARING-NEEDLE,HK1210FM 92046 92046-0034 1
SEAL-OIL,TC9Y 40X62X10X17.2 92049 92049-0815 2
SEAL-OIL,HTC 30X45X8 92049A 92049-0848 1
RING-O,35.8MM 92055 92055-1281 1
GASKET,12X22X2 92065 92065-097 1
PLUG,36X7.5 92066 92066-0744 1
PLUG,12X15 92066A 92066-0943 1
BEARING-ROLLER,HC30305J 92116 92116-0011 2
BUSHING 92139 92139-1283 1
BOLT,12X175 92154 92154-3859 2
BOLT,FLANGED,6X12 92154A 92154-4349 1
CLAMP 92171 92171-0453 2
SCREW,6X16 92172 92172-0284 2
TUBE,5.8X10.8X1000 92192 92192-2765 1
BOLT-FLANGED,8X45 130 130BA0845 12
BOLT-FLANGED,10X55 130A 130BA1055 6
BOLT-FLANGED,10X90 130B 130BB1090 1
BOLT-FLANGED,8X20 130C 130CA0820 2
BOLT-FLANGED,10X35 130D 130CA1035 2
BOLT-FLANGED,10X85 130E 130CA1085 2
BOLT-FLANGED-SMALL,6X12 132 132BA0612 1
PIN-DOWEL,8X12 551 551A0812 2
