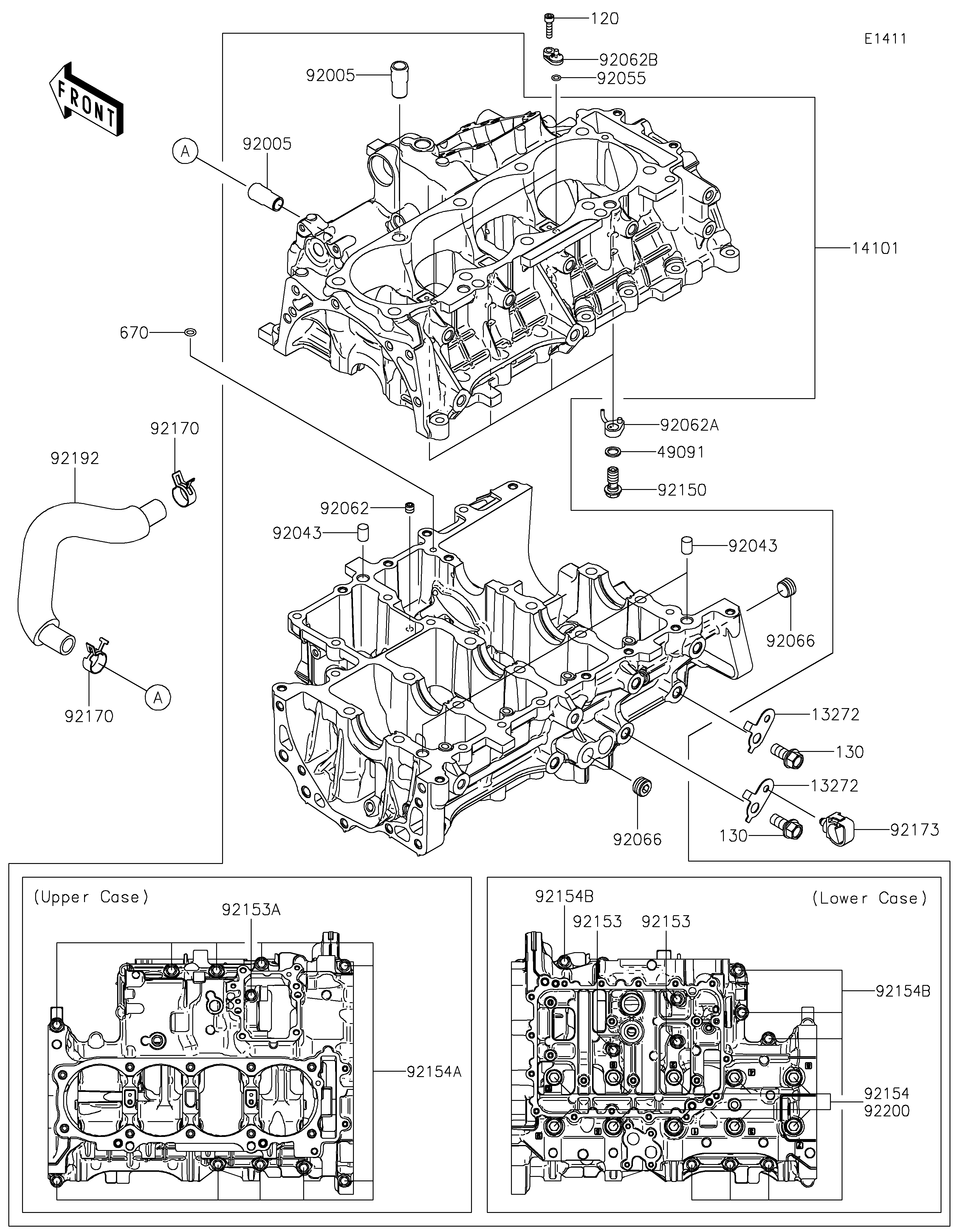

2026 TERYX®5 H2 DELUXE eS - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
13272
13272
14101
49091
92005
92005
92043
92043
92055
92062
92062A
92062B
92066
92066
92150
92153
92153
92153A
92154
92154A
92154B
92154B
92170
92170
92173
92192
92200
120
130
130
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13272 13272-4471 2
SET-CRANKCASE 14101 14101-0066 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
FITTING,BREATHER 92005 92005-1238 2
PIN,10X14 92043 92043-1506 3
RING-O,5.5X1.5 92055 92055-1343 2
NOZZLE 92062 92062-0580 1
NOZZLE 92062A 92062-0590 4
NOZZLE 92062B 92062-0592 2
PLUG 92066 92066-0831 2
BOLT,BANJO,10X23 92150 92150-1641 4
BOLT,FLANGED,7X85 92153 92153-1043 3
BOLT,FLANGED,7X60 92153A 92153-1045 1
BOLT,FLANGED,10X100 92154 92154-1446 10
BOLT,7X35 92154A 92154-4472 10
BOLT,FLANGED,7X35 92154B 92154-7806 7
CLAMP 92170 92170-1060 2
CLAMP 92173 92173-0861 1
TUBE,BLOWBY GAS 92192 92192-2973 1
WASHER,10.2X18.4X1.8 92200 92200-0990 10
BOLT-SOCKET,5X20 120 120CA0520 2
BOLT-FLANGED,10X22 130 130BA1022 2
O RING,7MM 670 670D1507 1
