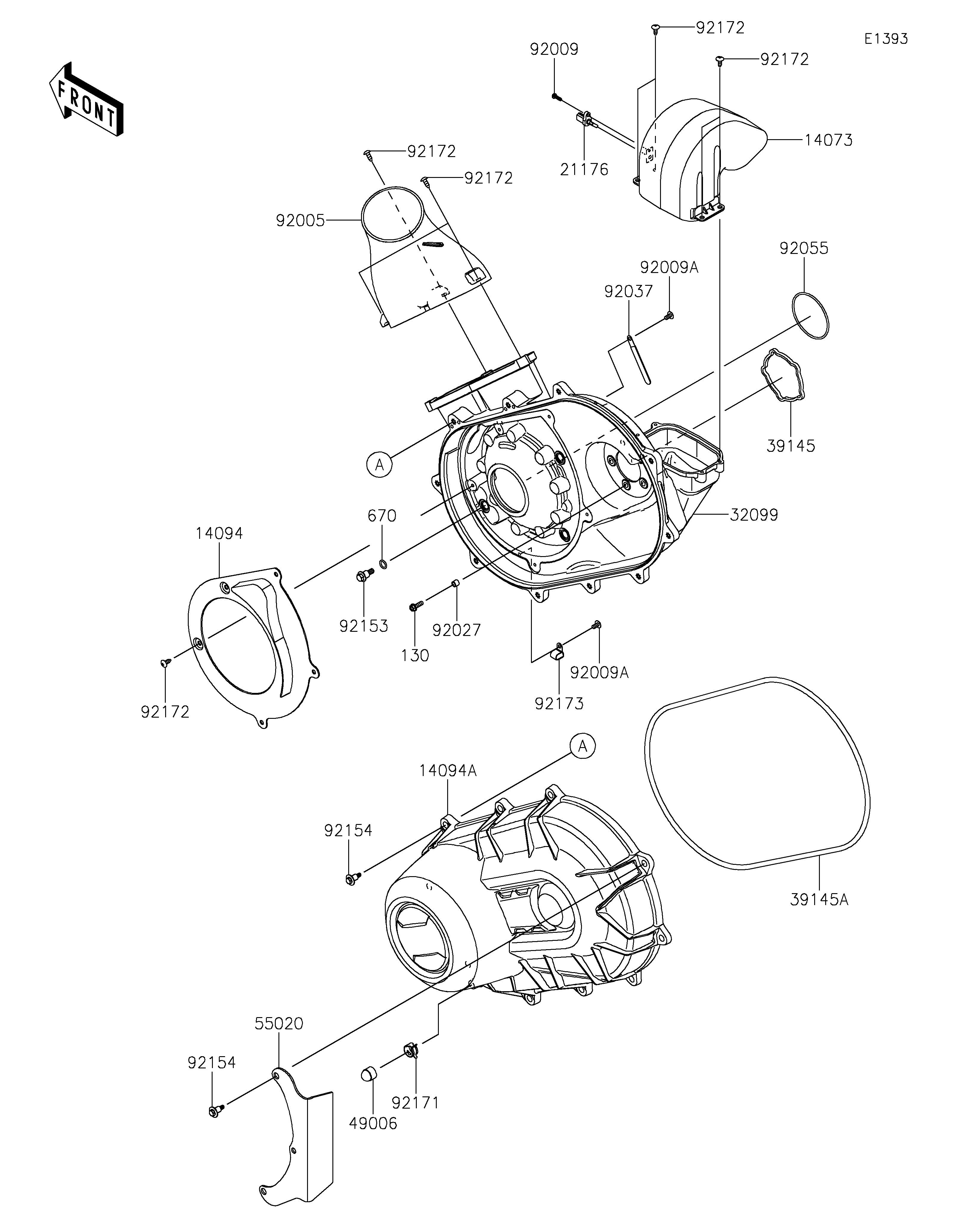

2026 TERYX®5 H2 DELUXE eS - Converter Cover

DOWNLOAD PDF
SELECT A NEW PART
14073
14094
14094A
21176
32099
39145
39145A
49006
55020
92005
92009
92009A
92009A
92027
92037
92055
92153
92154
92154
92171
92172
92172
92172
92172
92172
92173
130
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DUCT,EXHAUST 14073 14073-2138 1
COVER,AIR GUIDE 14094 14094-0438 1
COVER,CVT 14094A 14094-0541 1
SENSOR,AIR TEMPERATURE 21176 21176-0048 1
CASE,CVT 32099 32099-0838 1
TRIM-SEAL 39145 39145-0714 1
TRIM-SEAL,CVT COVER 39145A 39145-0781 1
BOOT,DRAIN 49006 49006-3718 1
GUARD 55020 55020-2653 1
FITTING,INTAKE 92005 92005-1486 1
SCREW,TAPPING,5X16 92009 92009-1264 1
SCREW,6X12 92009A 92009-1480 2
COLLAR,6.8X10X8.5 92027 92027-129 5
CLAMP 92037 92037-1993 1
RING-O,84.4X3.1 92055 92055-0916 1
BOLT,8X26.5 92153 92153-0594 4
BOLT,CVT COVER 92154 92154-7452 10
CLAMP 92171 92171-0329 1
SCREW,6X16 92172 92172-0284 12
CLAMP 92173 92173-2439 1
BOLT-FLANGED,6X20 130 130BA0620 5
O RING,12MM 670 670D2012 4
