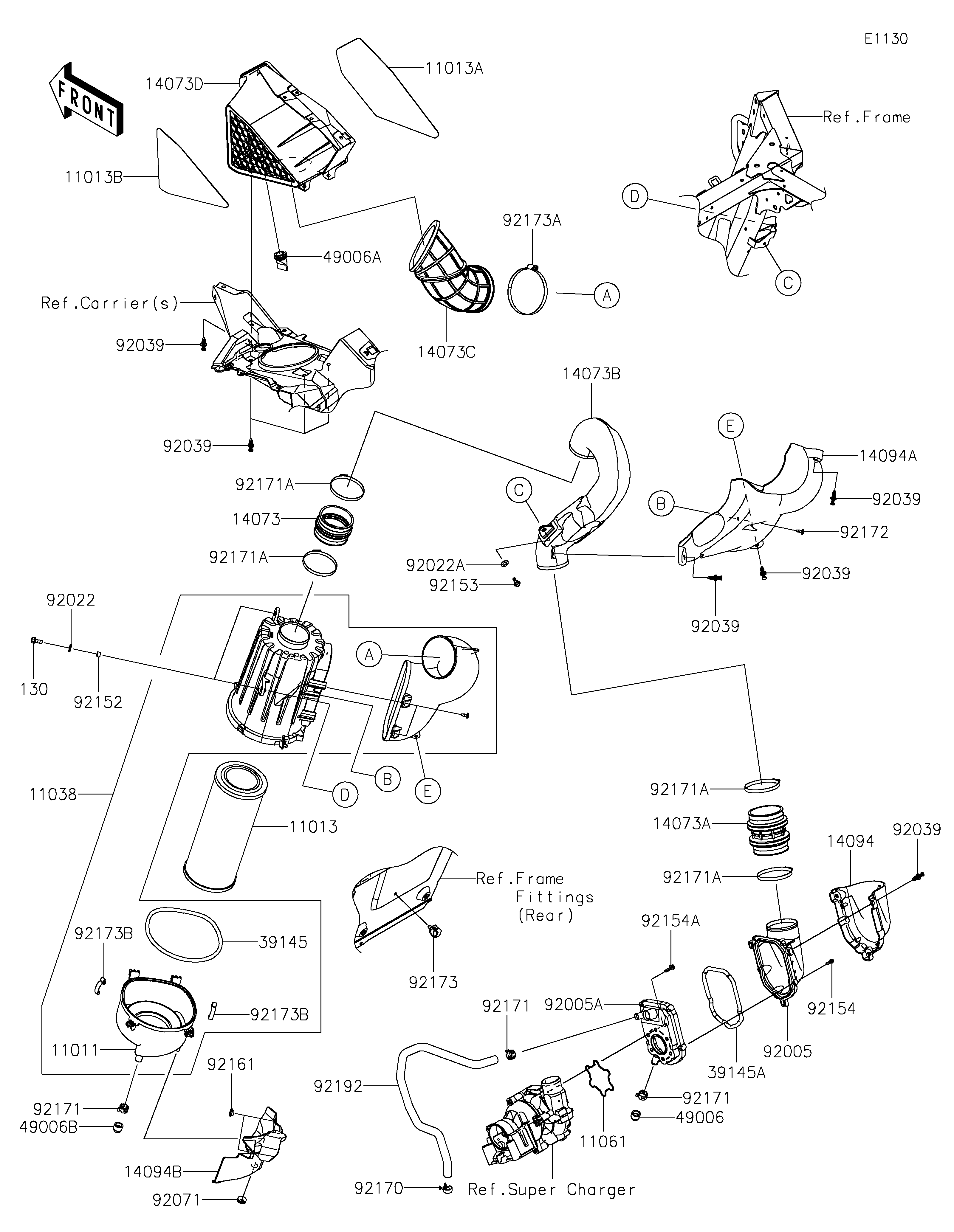

2026 TERYX®5 H2 DELUXE eS - Air Cleaner
11011
11013
11013A
11013B
11038
11061
14073
14073A
14073B
14073C
14073D
14094
14094A
14094B
39145
39145A
49006
49006A
49006B
92005
92005A
92022
92022A
92039
92039
92039
92039
92039
92039
92071
92152
92153
92154
92154A
92161
92170
92171
92171
92171
92171A
92171A
92171A
92171A
92172
92173
92173A
92173B
92173B
92192
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE-AIR FILTER,LWR | 11011 | 11011-1704 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-0835 | 1 | ||
| ELEMENT-AIR FILTER,OUTSIDE | 11013A | 11013-0837 | 1 | ||
| ELEMENT-AIR FILTER,INSIDE | 11013B | 11013-0838 | 1 | ||
| CASE-ASSY-AIR FILTER | 11038 | 11038-0731 | 1 | ||
| GASKET,COMPRESSOR | 11061 | 11061-1591 | 1 | ||
| DUCT,A/C | 14073 | 14073-1957 | 1 | ||
| DUCT,S/C SIDE | 14073A | 14073-1961 | 1 | ||
| DUCT,A/C SIDE | 14073B | 14073-1967 | 1 | ||
| DUCT,INTAKE | 14073C | 14073-2117 | 1 | ||
| DUCT,PRE FILTER | 14073D | 14073-2123 | 1 | ||
| COVER,FITTING | 14094 | 14094-0210 | 1 | ||
| COVER,DUCT | 14094A | 14094-0404 | 1 | ||
| COVER,A/C | 14094B | 14094-0405 | 1 | ||
| TRIM-SEAL | 39145 | 39145-0782 | 1 | ||
| TRIM-SEAL | 39145A | 39145-0783 | 1 | ||
| BOOT,DRAIN | 49006 | 49006-0560 | 1 | ||
| BOOT | 49006A | 49006-0633 | 1 | ||
| BOOT,DRAIN | 49006B | 49006-3718 | 1 | ||
| FITTING,UPP | 92005 | 92005-1492 | 1 | ||
| FITTING,LWR | 92005A | 92005-1601 | 1 | ||
| WASHER,8.5X20X1.6 | 92022 | 92022-1561 | 2 | ||
| WASHER,10.5X20X1 | 92022A | 92022-239 | 1 | ||
| RIVET | 92039 | 92039-0865 | 10 | ||
| GROMMET | 92071 | 92071-1115 | 1 | ||
| COLLAR,8.8X12.3X6.9 | 92152 | 92152-1853 | 2 | ||
| BOLT,FLANGED,6X19 | 92153 | 92153-1400 | 1 | ||
| BOLT,SOCKET,5X18 | 92154 | 92154-1450 | 5 | ||
| BOLT,FLANGED,6X22 | 92154A | 92154-3858 | 6 | ||
| DAMPER | 92161 | 92161-1531 | 2 | ||
| CLAMP | 92170 | 92170-1060 | 1 | ||
| CLAMP | 92171 | 92171-0329 | 3 | ||
| CLAMP | 92171A | 92171-1383 | 4 | ||
| SCREW,6X16 | 92172 | 92172-0284 | 1 | ||
| CLAMP | 92173 | 92173-0861 | 1 | ||
| CLAMP,130MM | 92173A | 92173-1938 | 1 | ||
| CLAMP,AIR FILTER CASE | 92173B | 92173-2023 | 2 | ||
| TUBE,BREATHER | 92192 | 92192-2774 | 1 | ||
| BOLT-FLANGED,8X20 | 130 | 130BA0820 | 2 |
