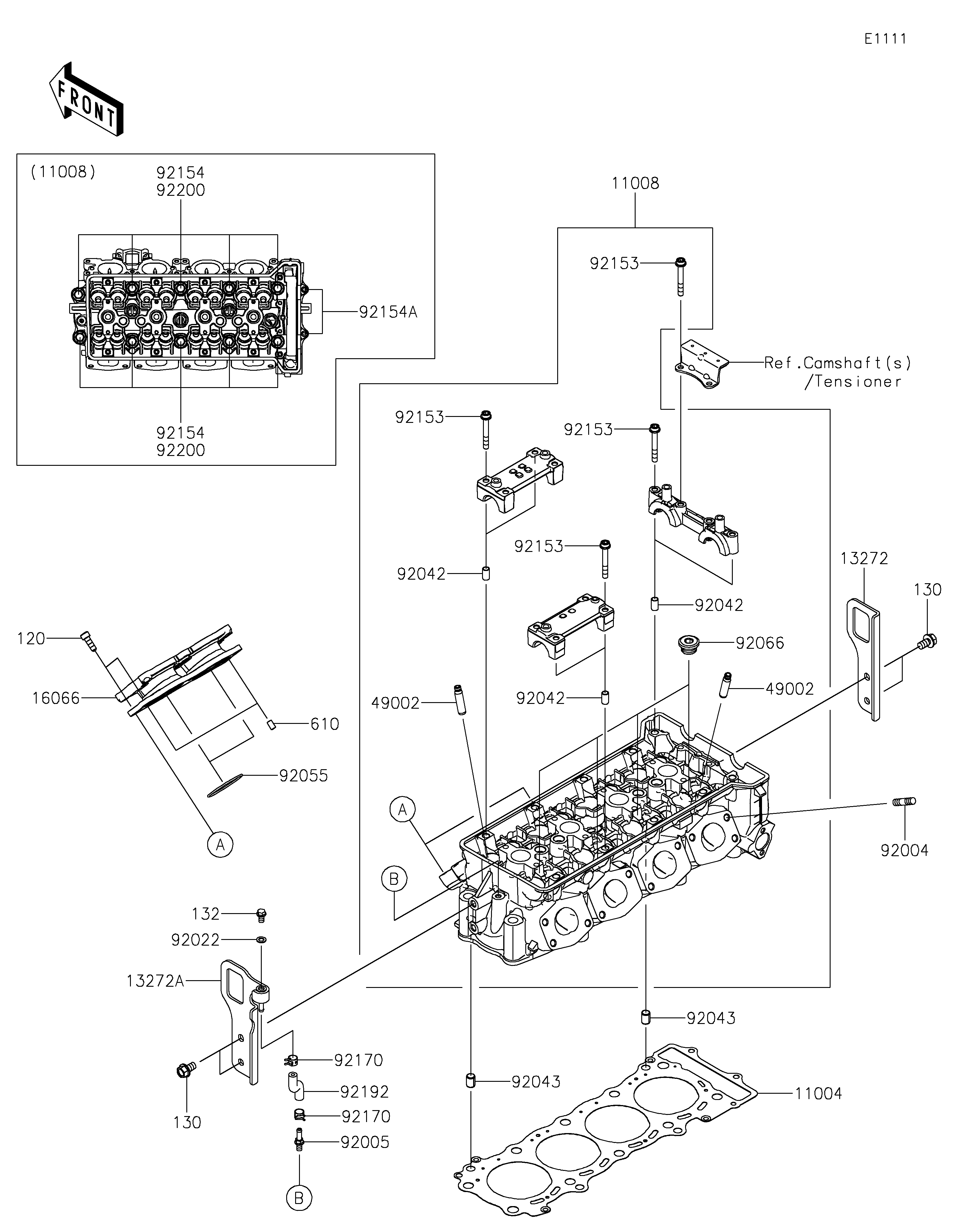

2026 TERYX®5 H2 DELUXE eS - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
13272
13272A
16066
49002
49002
92004
92005
92022
92042
92042
92042
92043
92043
92055
92066
92153
92153
92153
92153
92154
92154
92154A
92170
92170
92192
92200
92200
120
130
130
132
610
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-0821 1
HEAD-COMP-CYLINDER 11008 11008-1595 1
PLATE,RH 13272 13272-7200 1
PLATE,LH 13272A 13272-7293 1
HOLDER-THROTTLE BODY 16066 16066-0033 2
GUIDE-VALVE 49002 49002-0009 16
STUD,8X22 92004 92004-0025 10
FITTING 92005 92005-0826 1
WASHER,6.2X11X1 92022 92022-304 1
PIN,DOWEL,6.3X8X14 92042 92042-007 10
PIN,8.2X10X14 92043 92043-1264 2
RING-O,43.7X1.9 92055 92055-1401 4
PLUG,18X10 92066 92066-0832 4
BOLT,SOCKET,6X45 92153 92153-0656 20
BOLT,11X157 92154 92154-3931 10
BOLT,SOCKET,6X90 92154A 92154-7805 2
CLAMP 92170 92170-1493 2
TUBE,4X10X78 92192 92192-2762 1
WASHER,11.5X21X2.3 92200 92200-0341 10
BOLT-SOCKET,6X18 120 120CB0618 10
BOLT-FLANGED,8X14 130 130CA0814 4
BOLT-FLANGED-SMALL,6X10 132 132BA0610 1
ROLLER,6X10 610 610A0610 4
