Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
16087
16087
51004
51004
51049
51049
92037
92037
92037
92037
92037A
92037A
92072
92072
92152
92152
92161
92161
92161
92161
92161
92161
92161A
92161A
92171
92171
92171
92171
92171A
92171A
92191
92191
92192
92192
130
130

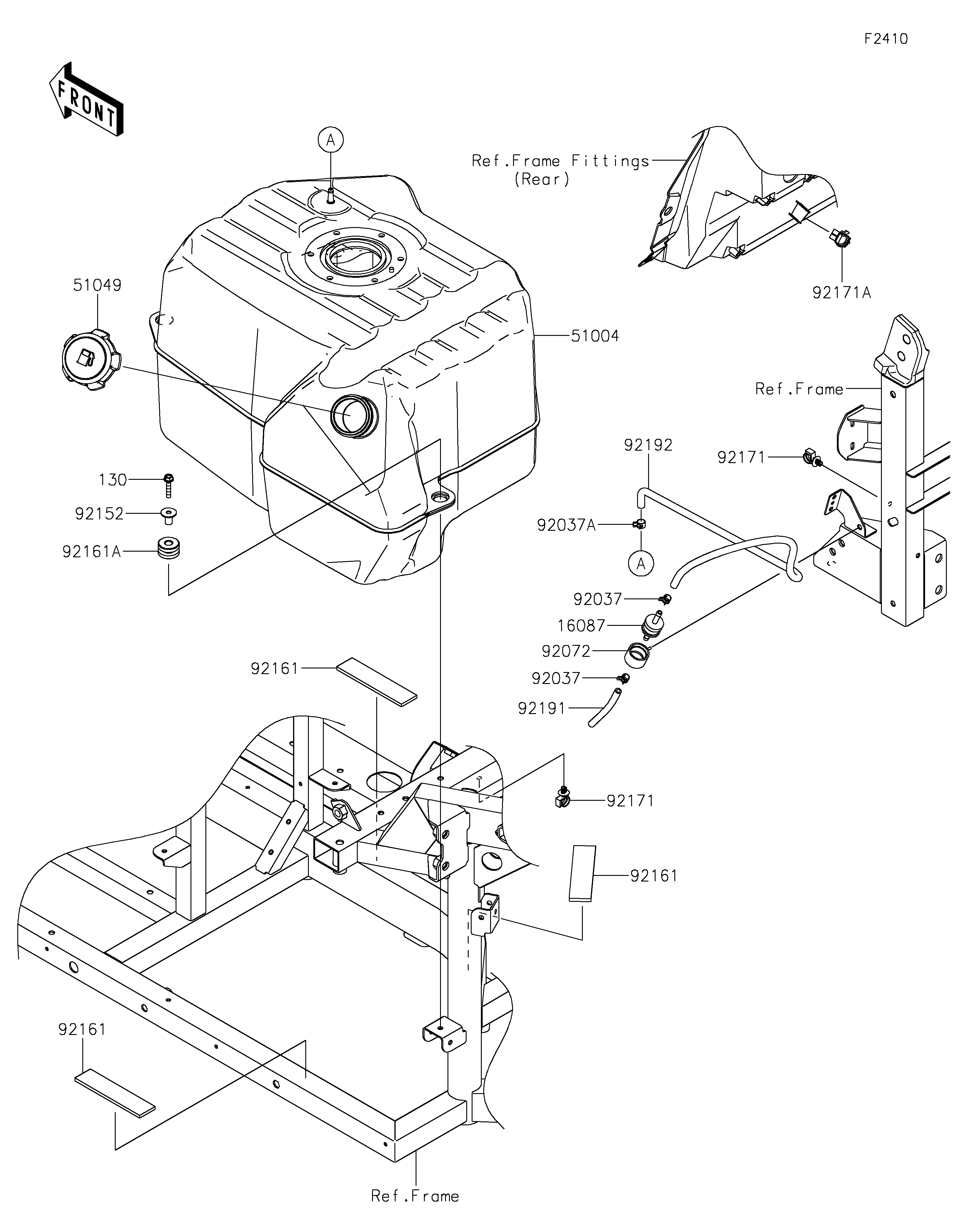

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| VALVE-CHECK | 16087 | 16087-0008 | 1 | CN,US | |
| TANK-FUEL | 51004 | 51004-0036 | 1 | CN,US | |
| CAP-TANK,FUEL | 51049 | 51049-0718 | 1 | CN,US | |
| CLAMP,TUBE | 92037 | 92037-1461 | 2 | CN,US | |
| CLAMP | 92037A | 92037-2113 | 1 | CN,US | |
| BAND | 92072 | 92072-0850 | 1 | CN,US | |
| COLLAR,6.8X10X18.1 | 92152 | 92152-1867 | 3 | CN,US | |
| DAMPER,31.1X130X5 | 92161 | 92161-0936 | 3 | CN,US | |
| DAMPER,TANK | 92161A | 92161-2178 | 3 | CN,US | |
| CLAMP | 92171 | 92171-0453 | 2 | CN,US | |
| CLAMP,EDGE CLIP | 92171A | 92171-1722 | 1 | CN,US | |
| TUBE,5X9X100 | 92191 | 92191-1792 | 1 | CN,US | |
| TUBE,BREATHER | 92192 | 92192-2626 | 1 | CN,US | |
| BOLT-FLANGED,6X30 | 130 | 130BA0630 | 3 | CN,US |
