Parts Diagrams |

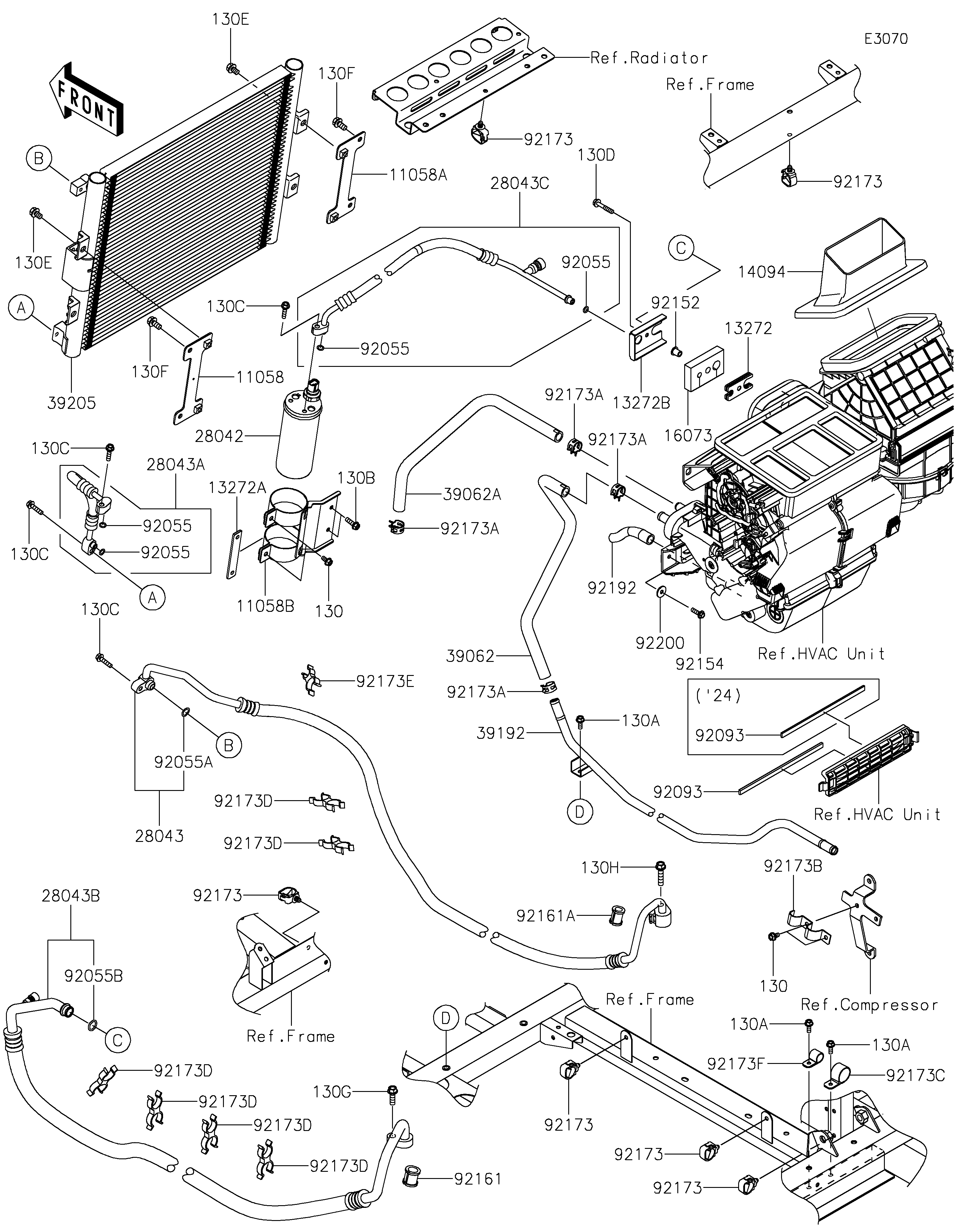

2024 Ridge HVAC - Heat Exchanger Equipment
11058
11058
11058A
11058A
11058B
11058B
13272
13272
13272A
13272A
13272B
13272B
14094
14094
16073
16073
28042
28042
28043
28043
28043A
28043A
28043B
28043B
28043C
28043C
39062
39062
39062A
39062A
39192
39192
39205
39205
92055
92055
92055
92055
92055
92055
92055
92055
92055A
92055A
92055B
92055B
92093
92093
92093
92093
92152
92152
92154
92154
92161
92161
92161A
92161A
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173B
92173B
92173C
92173C
92173D
92173D
92173D
92173D
92173D
92173D
92173D
92173D
92173D
92173D
92173D
92173D
92173E
92173E
92173F
92173F
92192
92192
92200
92200
130
130
130
130
130A
130A
130A
130A
130A
130A
130B
130B
130C
130C
130C
130C
130C
130C
130C
130C
130D
130D
130E
130E
130E
130E
130F
130F
130F
130F
130G
130G
130H
130H
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,CONDENSER LH | 11058 | 11058-0293 | 1 | ||
| BRACKET,CONDENSER RH | 11058A | 11058-0294 | 1 | ||
| BRACKET,RECEIVER | 11058B | 11058-1341 | 1 | ||
| PLATE,A/C UNIT | 13272 | 13272-4098 | 1 | ||
| PLATE,RECEIVER DRIER | 13272A | 13272-4099 | 1 | ||
| PLATE,INSULATOR | 13272B | 13272-4205 | 1 | ||
| COVER | 14094 | 14094-0255 | 1 | ||
| INSULATOR | 16073 | 16073-0944 | 1 | ||
| RECEIVER-DRIER | 28042 | 28042-0001 | 1 | ||
| HOSE-REFRIGERANT | 28043 | 28043-0001 | 1 | ||
| HOSE-REFRIGERANT | 28043A | 28043-0002 | 1 | ||
| HOSE-REFRIGERANT | 28043B | 28043-0004 | 1 | ||
| HOSE-REFRIGERANT | 28043C | 28043-0005 | 1 | ||
| HOSE-COOLING,PIPE-A/C UNIT | 39062 | 39062-0967 | 1 | ||
| HOSE-COOLING,A/C UNIT-FITTING | 39062A | 39062-0968 | 1 | ||
| PIPE-WATER,HEAD-A/C UNIT | 39192 | 39192-0725 | 1 | ||
| HEAT EXCHANGER | 39205 | 39205-0001 | 1 | ||
| RING-O | 92055 | 92055-1751 | 4 | ||
| RING-O | 92055A | 92055-1773 | 1 | ||
| RING-O | 92055B | 92055-1774 | 1 | ||
| SEAL | 92093 | 92093-0835 | 2 | ||
| COLLAR | 92152 | 92152-0413 | 1 | ||
| BOLT,FLANGED,6X20 | 92154 | 92154-0107 | 5 | ||
| DAMPER | 92161 | 92161-2474 | 1 | ||
| DAMPER | 92161A | 92161-2475 | 1 | ||
| CLAMP | 92173 | 92173-0861 | 6 | ||
| CLAMP | 92173A | 92173-2285 | 4 | ||
| CLAMP | 92173B | 92173-2547 | 1 | ||
| CLAMP | 92173C | 92173-2548 | 1 | ||
| CLAMP | 92173D | 92173-2549 | 6 | ||
| CLAMP | 92173E | 92173-2550 | 1 | ||
| CLAMP | 92173F | 92173-2551 | 1 | ||
| TUBE,DRAIN | 92192 | 92192-2674 | 1 | ||
| WASHER,6.5X20X1.6 | 92200 | 92200-0283 | 5 | ||
| BOLT-FLANGED,6X12 | 130 | 130BA0612 | 4 | ||
| BOLT-FLANGED,6X16 | 130A | 130BA0616 | 3 | ||
| BOLT-FLANGED,6X20 | 130B | 130BA0620 | 2 | ||
| BOLT-FLANGED,6X25 | 130C | 130BA0625 | 4 | ||
| BOLT-FLANGED,6X35 | 130D | 130BA0635 | 1 | ||
| BOLT-FLANGED,8X12 | 130E | 130BA0812 | 4 | ||
| BOLT-FLANGED,8X16 | 130F | 130BA0816 | 4 | ||
| BOLT-FLANGED,8X25 | 130G | 130BA0825 | 1 | ||
| BOLT-FLANGED,8X35 | 130H | 130BA0835 | 1 |
| BRACKET,CONDENSER LH | |
| REF # | 11058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,CONDENSER RH | |
| REF # | 11058A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,RECEIVER | |
| REF # | 11058B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,A/C UNIT | |
| REF # | 13272 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,RECEIVER DRIER | |
| REF # | 13272A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,INSULATOR | |
| REF # | 13272B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER | |
| REF # | 14094 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR | |
| REF # | 16073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RECEIVER-DRIER | |
| REF # | 28042 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-REFRIGERANT | |
| REF # | 28043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-REFRIGERANT | |
| REF # | 28043A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-REFRIGERANT | |
| REF # | 28043B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-REFRIGERANT | |
| REF # | 28043C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,PIPE-A/C UNIT | |
| REF # | 39062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,A/C UNIT-FITTING | |
| REF # | 39062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-WATER,HEAD-A/C UNIT | |
| REF # | 39192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HEAT EXCHANGER | |
| REF # | 39205 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X20 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173D |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,DRAIN | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.6 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X12 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X16 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X20 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X25 | |
| REF # | 130C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X35 | |
| REF # | 130D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X12 | |
| REF # | 130E |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X16 | |
| REF # | 130F |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X25 | |
| REF # | 130G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X35 | |
| REF # | 130H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
