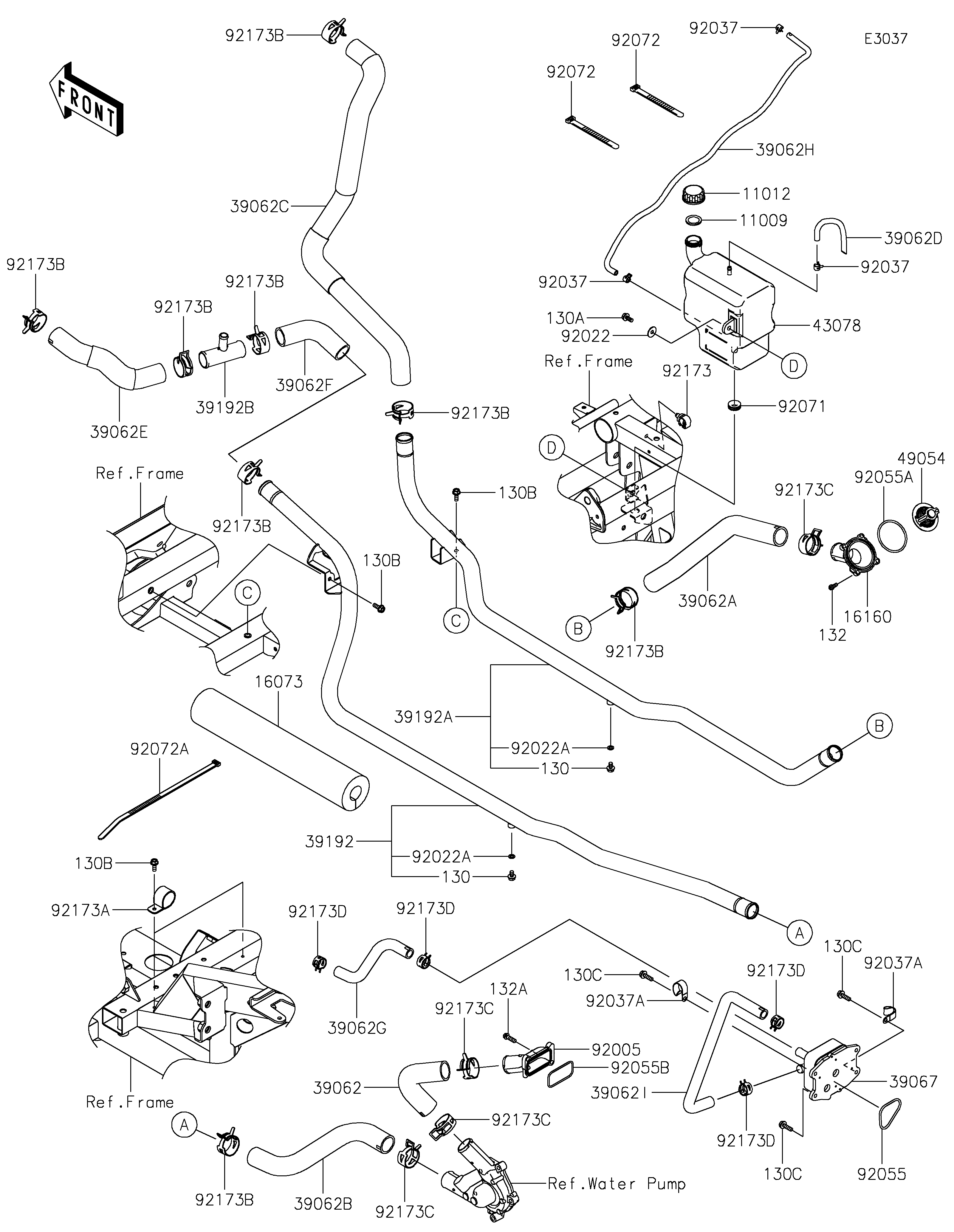

2024 Ridge HVAC - Water Pipe

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11012
11012
16073
16073
16160
16160
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
39062E
39062E
39062F
39062F
39062G
39062G
39062H
39062H
39062I
39062I
39067
39067
39192
39192
39192A
39192A
39192B
39192B
43078
43078
49054
49054
92005
92005
92022
92022
92022A
92022A
92022A
92022A
92037
92037
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92055
92055
92055A
92055A
92055B
92055B
92071
92071
92072
92072
92072
92072
92072A
92072A
92173
92173
92173A
92173A
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173C
92173C
92173C
92173C
92173C
92173C
92173C
92173C
92173D
92173D
92173D
92173D
92173D
92173D
92173D
92173D
130
130
130
130
130A
130A
130B
130B
130B
130B
130B
130B
130C
130C
130C
130C
130C
130C
132
132
132A
132A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
INSULATOR 16073 16073-0974 1
BODY,THERMOSTAT 16160 16160-0835 1
HOSE-COOLING,W/PUMP-FITTING 39062 39062-0953 1
HOSE-COOLING,ENGINE-PIPE RH 39062A 39062-0954 1
HOSE-COOLING,PIPE LH-W/PUMP 39062B 39062-0957 1
HOSE-COOLING,PIPE RH-RADIATOR 39062C 39062-0958 1
HOSE-COOLING,OVER FLOW 39062D 39062-0959 1
HOSE-COOLING,RADIATOR-FITTING 39062E 39062-0964 1
HOSE-COOLING,FITTING-PIPE LH 39062F 39062-0965 1
HOSE-COOLING,O/C-PIPE 39062G 39062-0966 1
HOSE-COOLING,RAD-RESERVOIR 39062H 39062-0969 1
HOSE-COOLING,HEAD-OIL COOLER 39062I 39062-0972 1
COOLER-OIL 39067 39067-0023 1
PIPE-WATER,LH 39192 39192-0703 1
PIPE-WATER,RH 39192A 39192-0704 1
PIPE-WATER 39192B 39192-0707 1
RESERVOIR 43078 43078-0617 1
THERMOSTAT 49054 49054-0014 1
FITTING 92005 92005-1443 1
WASHER,PLAIN,6.5X20X1 92022 92022-165 1
WASHER,6.2X11X1 92022A 92022-304 2
CLAMP,TUBE 92037 92037-1461 3
CLAMP 92037A 92037-1993 2
RING-O,46.4X3.1 92055 92055-0752 1
RING-O,53.5X2.6 92055A 92055-0831 1
RING-O,FITTING 92055B 92055-0923 1
GROMMET 92071 92071-1115 1
BAND,L=123 92072 92072-030 2
BAND,L=292.1 92072A 92072-3509 5
CLAMP,12MM DIA. 92173 92173-0736 1
CLAMP 92173A 92173-1204 2
CLAMP,28.6MM 92173B 92173-1205 8
CLAMP,33.4MM 92173C 92173-1981 4
CLAMP 92173D 92173-2285 4
BOLT-FLANGED,6X10 130 130BA0610 2
BOLT-FLANGED,6X14 130A 130BA0614 1
BOLT-FLANGED,6X16 130B 130BA0616 4
BOLT-FLANGED,6X20 130C 130CA0620 4
BOLT-FLANGED-SMALL,5X16 132 132BA0516 4
BOLT-FLANGED-SMALL,6X20 132A 132BA0620 2
