172
172
11005
11005A
11007
11007
11060
11060
13001
13001
13002
13002
13008
13008
13024
13024
13025
13025
13027
13029
92002
92004
92004
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92022
92033
92033
92033
92033
92043
92043
92055
92055

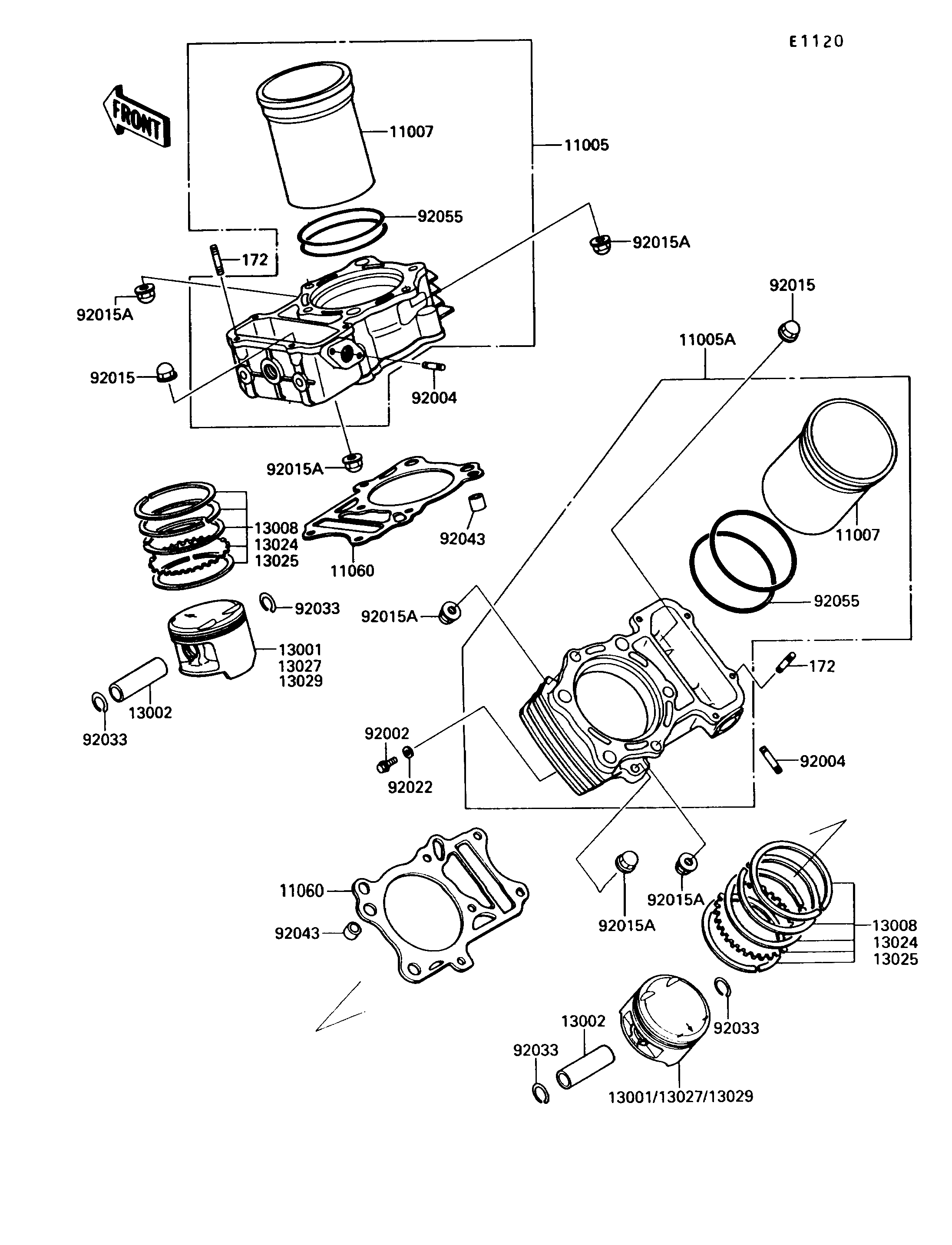

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-STUD,6X20 172 172G0620 4
CYLINDER-ENGINE,FR 11005 11005-1481 1
CYLINDER-ENGINE,RR 11005A 11005-1483 1
LINER-CYLINDER 11007 11007-1073 2
GASKET,CYLINDER BASE 11060 11060-1084 2
PISTON-ENGINE,STD 13001 13001-1215 2
PIN-PISTON 13002 13002-1056 2
RING-SET-PISTON,STD 13008 13008-1077 2
RING-SET-PISTON LL,O/S 1.00 13024 13024-1069 2
RING-SET-PISTON L,O/S 0.50 13025 13025-1076 2
PISTON-ENGINE LL,O/S,1.00 13027 13027-1128 2
PISTON-ENGINE L,O/S,0.50 13029 13029-1128 2
BOLT,6X10 92002 92002-1628 2
STUD,6X18 92004 92004-1154 4
NUT,8MM 92015 92015-1143 4
NUT,CAP,8MM 92015A 92015-1371 6
WASHER,6.1X12X1 92022 92022-077 2
RING-SNAP 92033 92033-1188 4
PIN,11X14X12.3 92043 92043-1266 4
RING-O,92MM 92055 92055-1274 4
