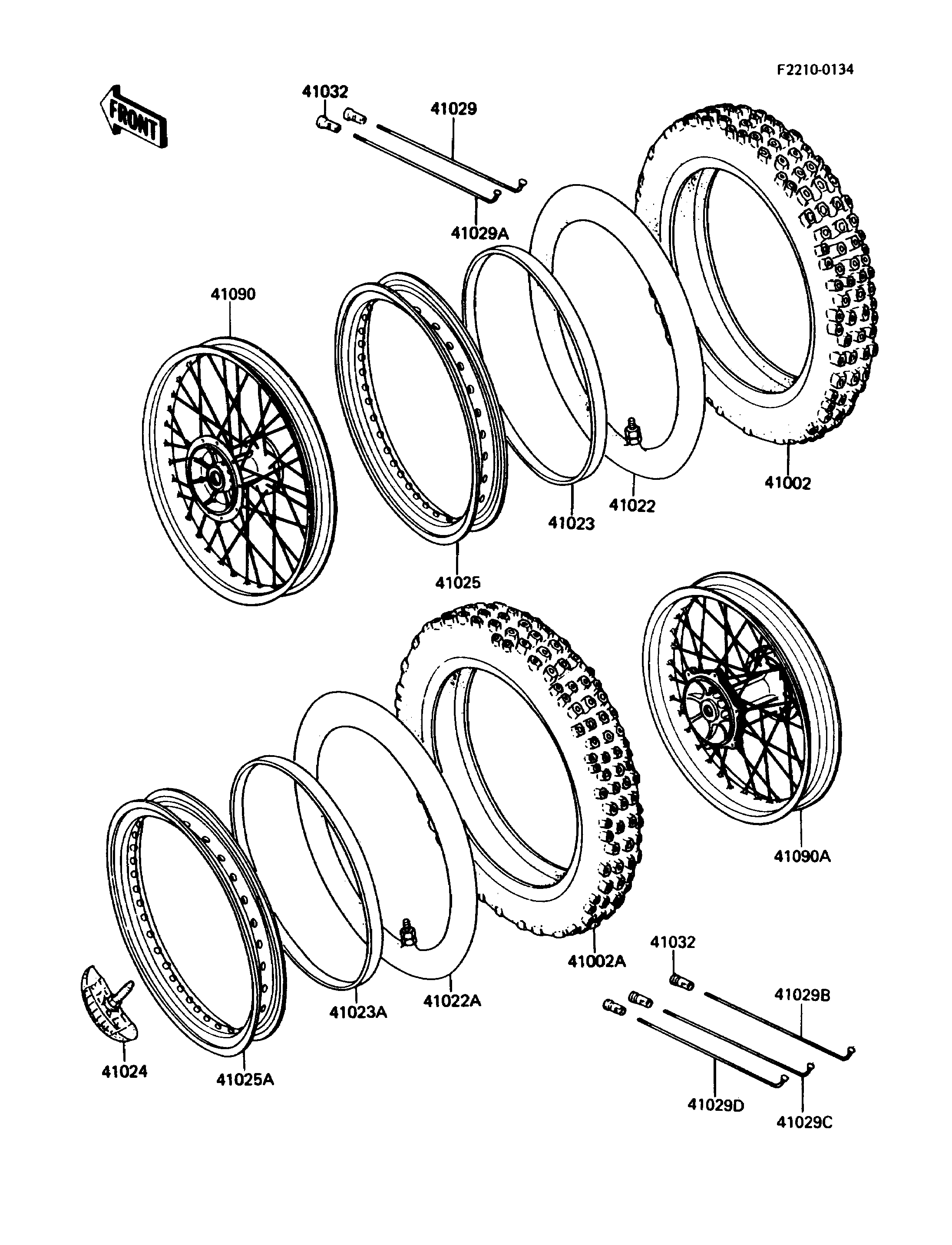

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE,FR,70/100-17 40M,K490(D) 41002 41002-1574 1
TIRE,RR,90/100-14 49M,K595(D) 41002A 41002-1677 1
TUBE-TIRE,70/100-17(D) 41022 41022-1124 1
TUBE-TIRE,90/100-14(D) 41022A 41022-1125 1
BAND-RIM,FR,80/90.70/100-17 41023 41023-1067 1
BAND-RIM,80/100-14(D) 41023A 41023-1068 1
STOPPER-RIM,1.60-M(DUNLOP) 41024 41024-010 1
RIM,FR,1.40X17EN6J 41025 41025-1184 1
RIM,RR,1.60X14EN6J 41025A 41025-1185 1
SPOKE-INNER,FR,188MMX166D 41029 41029-1113 14
SPOKE-INNER,FR,184MMX166D 41029A 41029-1114 14
SPOKE-INNER,RR,RH,156MMX168D 41029B 41029-1176 7
SPOKE-INNER,RR,RH,153MMX168D 41029C 41029-1177 7
SPOKE-INNER,RR,LH,158MMX172D 41029D 41029-1187 14
NIPPLE-SPOKE 41032 41032-1057 56
WHEEL-SUB ASSY,FR 41090 41090-1058 1 (OPTION)
WHEEL-SUB ASSY,RR 41090A 41090-1059 1 (OPTION)
