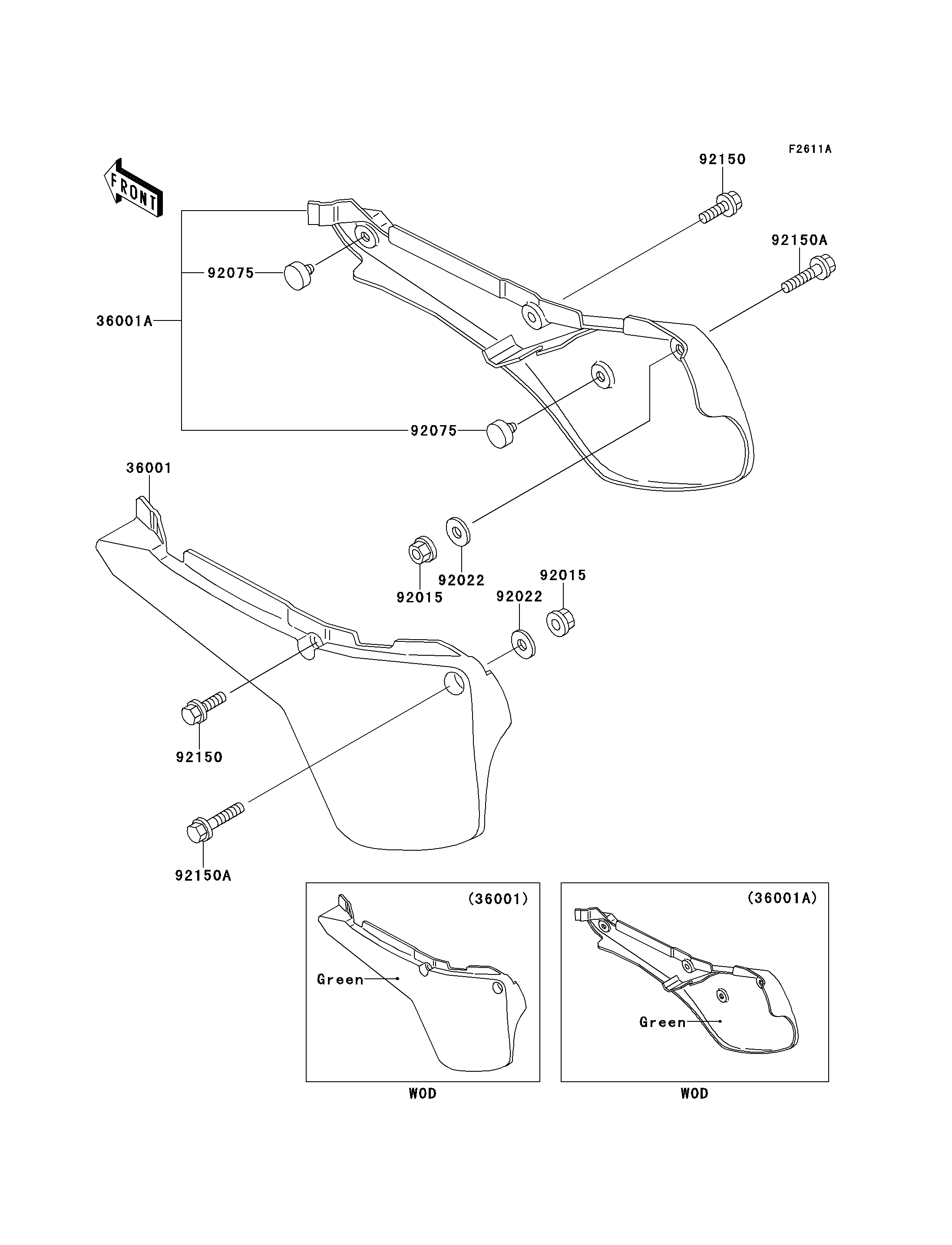

36001
36001A
92015
92015
92022
92022
92075
92075
92150
92150
92150A
92150A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,L.GREEN 36001 36001-1398-6W 1
COVER-SIDE,RH,L.GREEN 36001A 36001-1399-6W 1
NUT,LOCK,FLANGED,6MM 92015 92015-1339 2
WASHER,7X16X1.2 92022 92022-024 2
DAMPER 92075 92075-1598 2
BOLT,6X14 92150 92150-1340 2
BOLT,FLANGED,6X30 92150A 92150-1486 2
