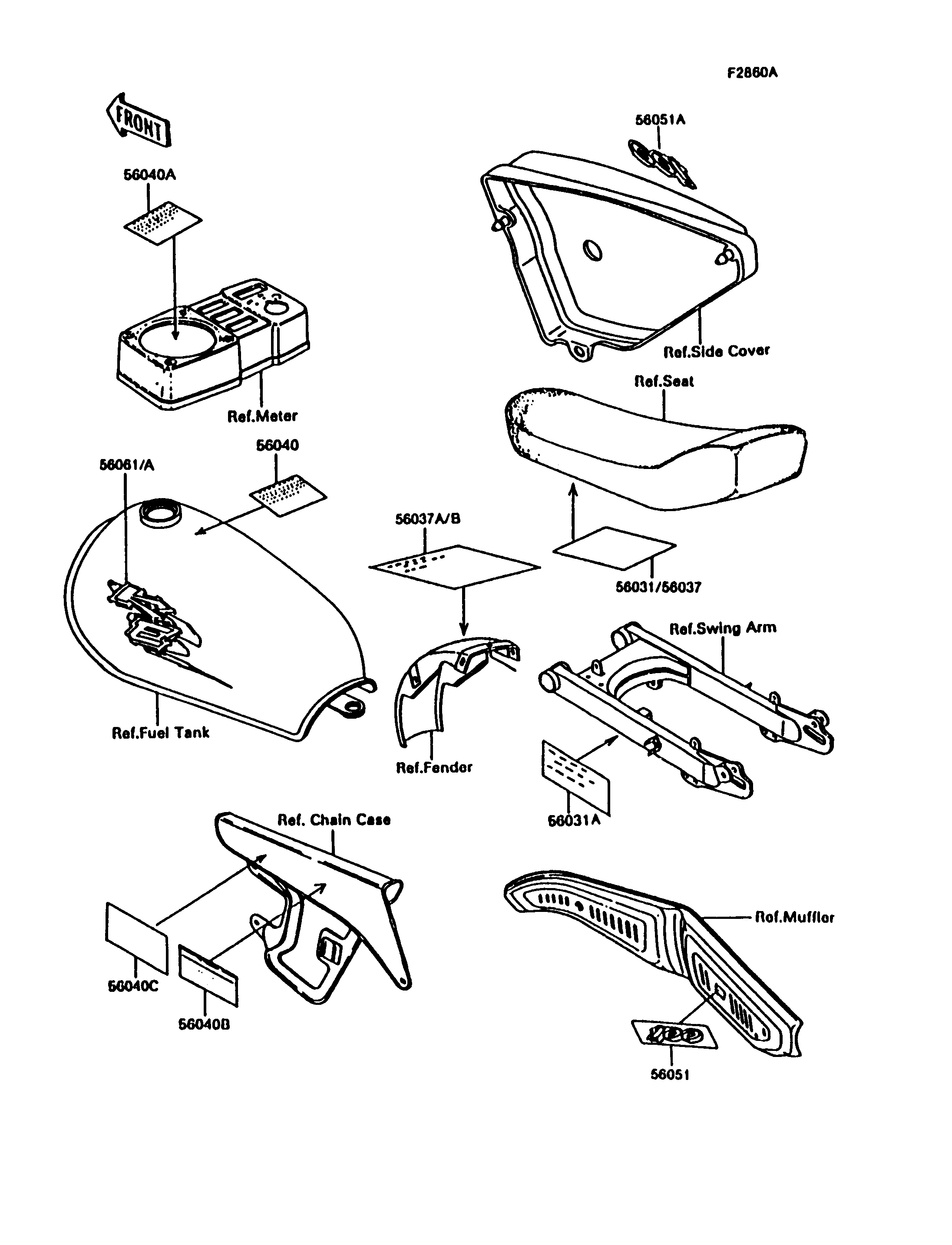

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL-MANUAL,BATTERY VENT 56031 56031-1804 1
LABEL-MANUAL,CHAIN 56031A 56031-1962 1
LABEL-SPECIFICATION 56037 56037-1022 1
LABEL-SPECIFICATION,TIRE&LOAD 56037A 56037-1711 1
LABEL-SPECIFICATION,TIRE&LOAD 56037B 56037-1712 1
LABEL-WARNING,BREAK IN CAUTION 56040 56040-1008 1
LABEL-WARNING,BREAK IN CAUTION 56040A 56040-1010 1
LABEL-WARNING,SIDE STAND 56040B 56040-1012 1
LABEL-WARNING,SIDE STAND 56040C 56040-1116 1
MARK,MUFFLER COVER,100 56051 56051-1354 1
MARK,SIDE COVER,RH,100 56051A 56051-1355 1
PATTERN,FUEL TANK,LH 56061 56061-1543 1
PATTERN,FUEL TANK,RH 56061A 56061-1544 1
