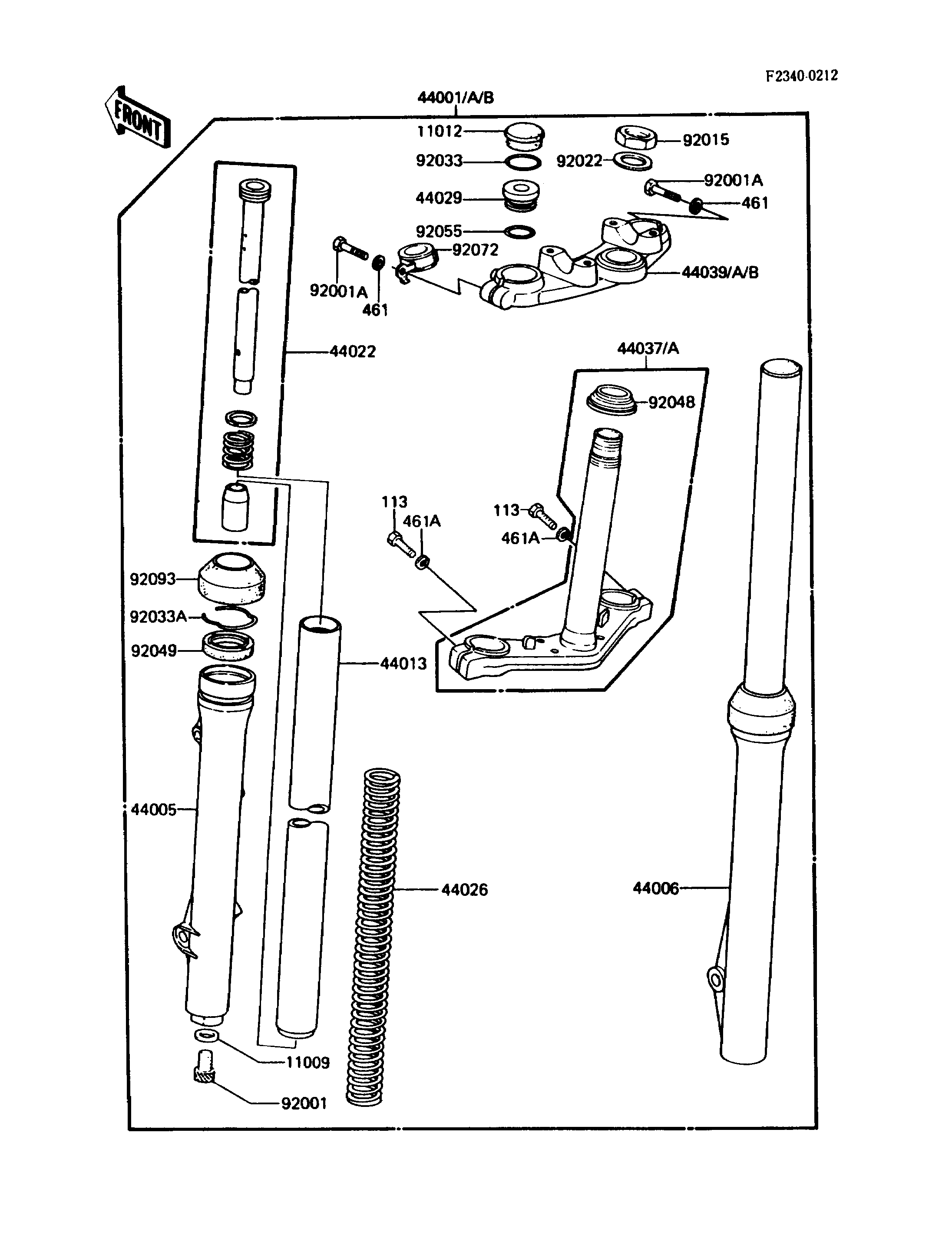

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER BOLT 11009 44045-051 2
CAP,RUBBER,FORK TOP 11012 11012-1067 2
FORK-FRONT 44001A 44001-1557 1
PIPE-LEFT FORK OUTER 44005 44005-1101 1
PIPE-RIGHT FORK OUTER 44006 44006-1101 1
PIPE-FORK INNER,D=30 44013 44013-1061 2
CYLINDER-FORK 44022 44022-1058 2
SPRING-FRONT FORK,L=546.5 44026 44026-1109 2
SEAT-FORK SPRING 44029 44029-022 2
HOLDER-FORK UNDER 44037 44037-1157 1
HOLDER-FORK UPPER 44039A 44039-1112 1
BOLT,FORK CYLINDER 92001 44041-078 2
BOLT,8X35 92001A 92001-1643 2
NUT,FORK TOP 92015 92015-1224 1
WASHER,FORK TOP 92022 92022-1385 1
RING-SNAP 92033 44044-023 2
RING-SNAP,FORK OUTER TUBE 92033A 92033-1028 2
RACE,STEERING STEM BEARING 92048 92047-010 1
SEAL-OIL,FORK OUTER TUBE 92049 92049-1069 2
RING-O 92055 44046-025 2
BAND,CABLE 92072 92072-1089 1
DUST SHIELD,FORK 92093 92093-1054 2
BOLT-SMALL-FINE,10X35 113 113B1035 2
WASHER-SPRING,8MM 461 461F0800 2
WASHER-SPRING,10MM 461A 461F1000 2
