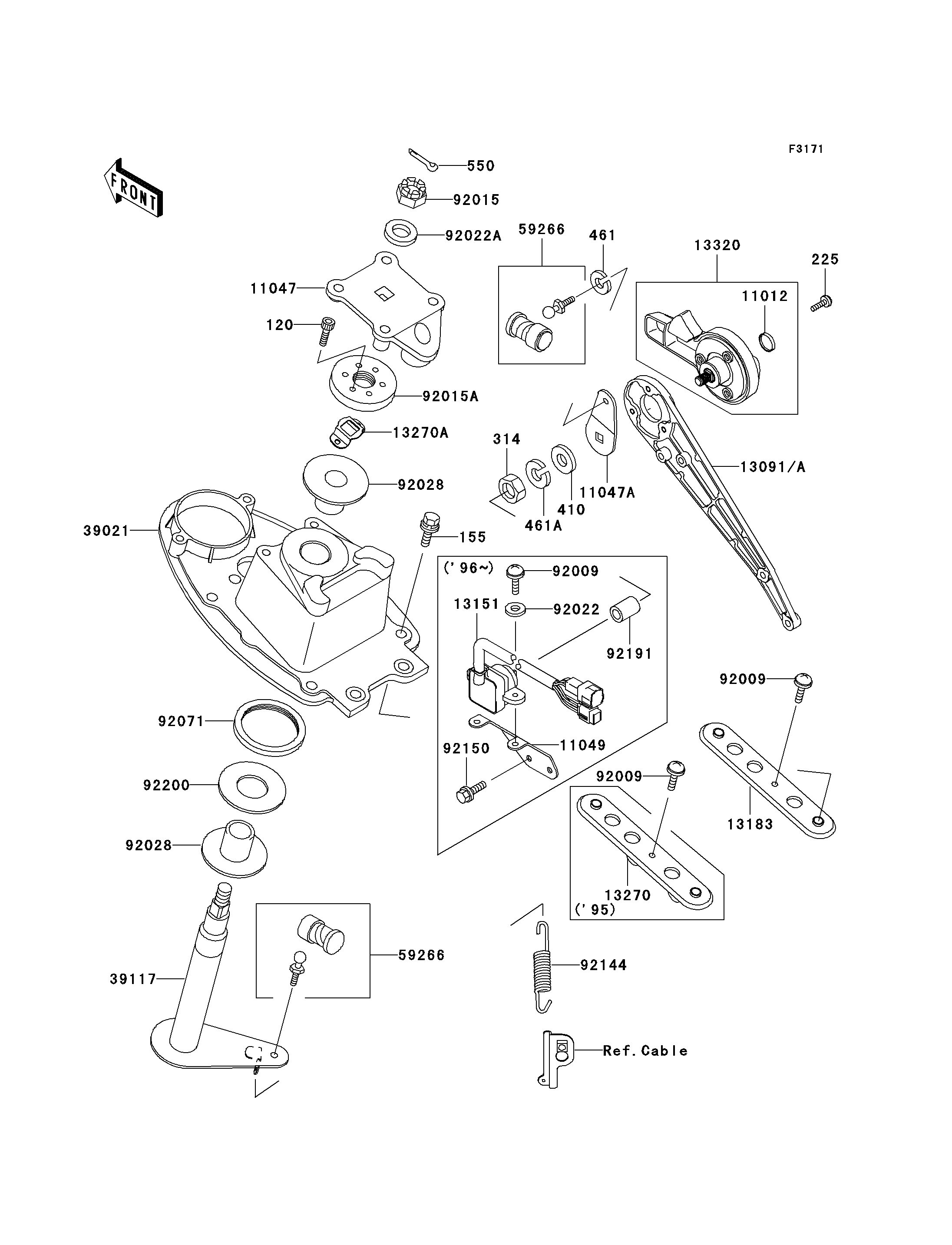

1995 STS - Handle Pole

DOWNLOAD PDF
SELECT A NEW PART
120
155
225
314
410
461
461A
550
11012
11047
11047A
13091
13183
13270
13270A
13320
39021
39117
59266
59266
92009
92009
92009
92015
92015A
92022A
92028
92028
92071
92144
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X10 120 120R0510 2
BOLT-WSP-SMALL,8X30 155 155R0830 4
SCREW-PAN-WSP-CROS,6X20 225 225R0620 3
NUT-HEX-FINE,10MM 314 314R1000 1
W-PLAIN-S,10MM 410 410S1000 1
WASHER-SPRING,6MM 461 461S0600 1
WASHER-SPRING,10MM 461A 461S1000 1
PIN-COTTER,3X35 550 550S3035 1
CAP,REVERSE LEVER 11012 11012-3783 1
BRACKET,HANDLE HOLDER 11047 11047-3759 1
BRACKET,STEERING LEVER 11047A 11047-3790 1
HOLDER,REVERSE 13091 13091-3773 1
PLATE,HANDLE POLE BRACKET 13183 13183-3806 1
PLATE,HANDLE POLE BRACKET,LH 13270 13270-3739 1
PLATE 13270A 13270-3780 1
LEVER-ASSY,REVERSE 13320 13320-3708 1
BRACKET-HANDLE POLE 39021 39021-3704 1
SHAFT-STRG 39117 39117-3706 1
JOINT-BALL 59266 59266-3707 2
SCREW,5X16 92009 92009-3789 2
NUT,CASTLE,14MM 92015 92015-3805 1
NUT 92015A 92015-3852 1
WASHER,15X34X2.0 92022A 92022-3738 1
BUSHING,STEERING 92028 92028-3748 2
GROMMET 92071 92071-3792 1
SPRING 92144 92144-3737 1
WASHER,32.5X70X2 92200 92200-3718 1
