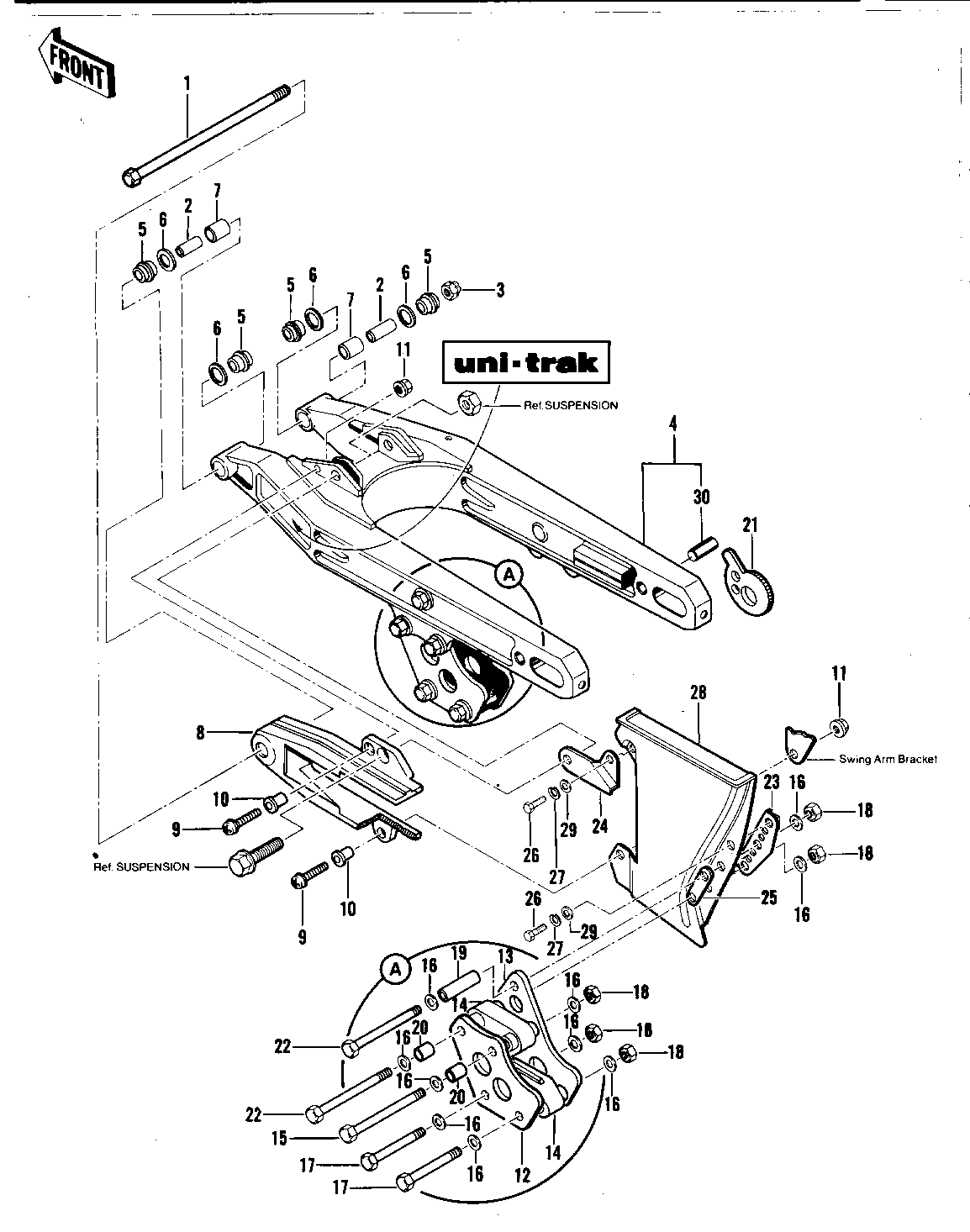

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-SWING ARM 1 33032-1020 1
SLEEVE,SWING ARM 2 42036-1031 2
NUT-LOCK,14MM 3 92019-011 1
SWING ARM 4 33001-4002 1 FORGED
CAP,SWING ARM 5 11012-1099 4
SHIM,SWING ARM 6 92025-1116 4
BUSHING 7 92028-1072 2
GUIDE,CHAIN 8 12053-4001 1
SCREW,6X20 9 92009-1289 1
COLLAR 10 92027-1260 2 L=3.5 MM
NUT-6MM 11 92015-1078 2
GUARD,CHAIN 12 55020-4009 1
GUARD,CHAIN 13 55020-4010 1
GUIDE,CHAIN 14 12053-1015 2
BOLT-UPSET 15 112G0660 1
WASHER PLAIN 6MM 16 411B0600 10
BOLT-UPSET 17 112G0645 2
NUT 18 92019-008 5
COLLAR 19 92027-4016 1
COLLAR 20 92027-4017 2
ADJUSTER-CHAIN,LH 21 33040-1060 2
BOLT,6X70 22 110G0670 2
BRACKET,CHAIN CASE,F 23 11034-1841 1
BRACKET,CHAIN CASE 24 11034-4076 1
BRACKET,CHAIN CASE 25 11034-4077 1
BOLT-UPSET 6X14 26 112B0614 2
WASHER SPRING 6MM 27 461F0600 2
CASE-CHAIN 28 36014-4005 1
WASHER 6.5X20X1.6T 29 92022-125 2
PIN,DOWEL,8X25 30 551A0825 2
