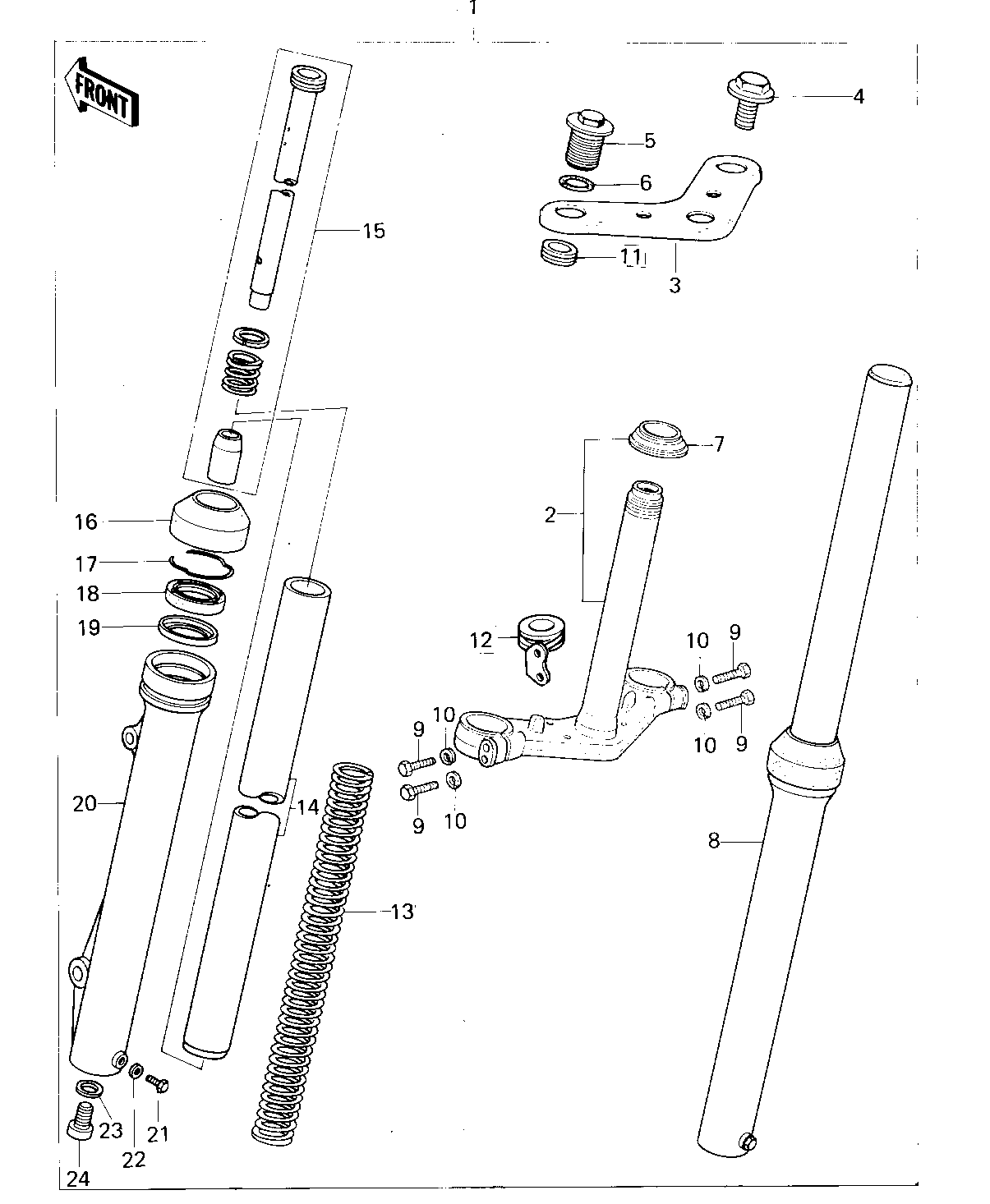

1980 KDX80 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-1124 1
STEM,STEERING 2 44037-1046 1
HEAD,STEERING STEM 3 44039-1008 1
BOLT,STEERING STEM 4 92001-1318 1
BOLT,FORK TOP 5 44029-1017 2
"O" RING 6 92055-1081 2
CONE STERNG BERG LOW 7 92047-010 1
TUBE,RH,FORK OUTER 8 44006-1040 1
BOLT,HEX HEAD,8X40 9 92001-1063 4
WASHER SPRING 8MM 10 461F0800 4
BOLT,FORK INNER,TOP 11 44029-1018 2
CLAMP,CABLE 12 92072-1039 1
SPRING,FORK INNER,LOW 13 44026-1048 2
TUBE,FORK INNER 14 44013-1032 2
CYLINDER-FORK 15 44022-1017 2
DUST SHIELD,FORK OUT 16 92093-1019 2
CIRCLIP,FORK OUTER 17 92033-1028 2
OIL SEAL 18 92049-1069 2
SPACER,FORK OUTER 19 92026-1041 2
TUBE,LH,FORK OUTER 20 44005-1040 1
BOLT HEX HEAD 6X8 21 110B0608 2
GASKET,DRAIN PLUG 22 44045-047 2
GASKET,FORK CYL BOLT 23 44045-051 2
BOLT,FORK CYLINDER 24 44041-078 2
