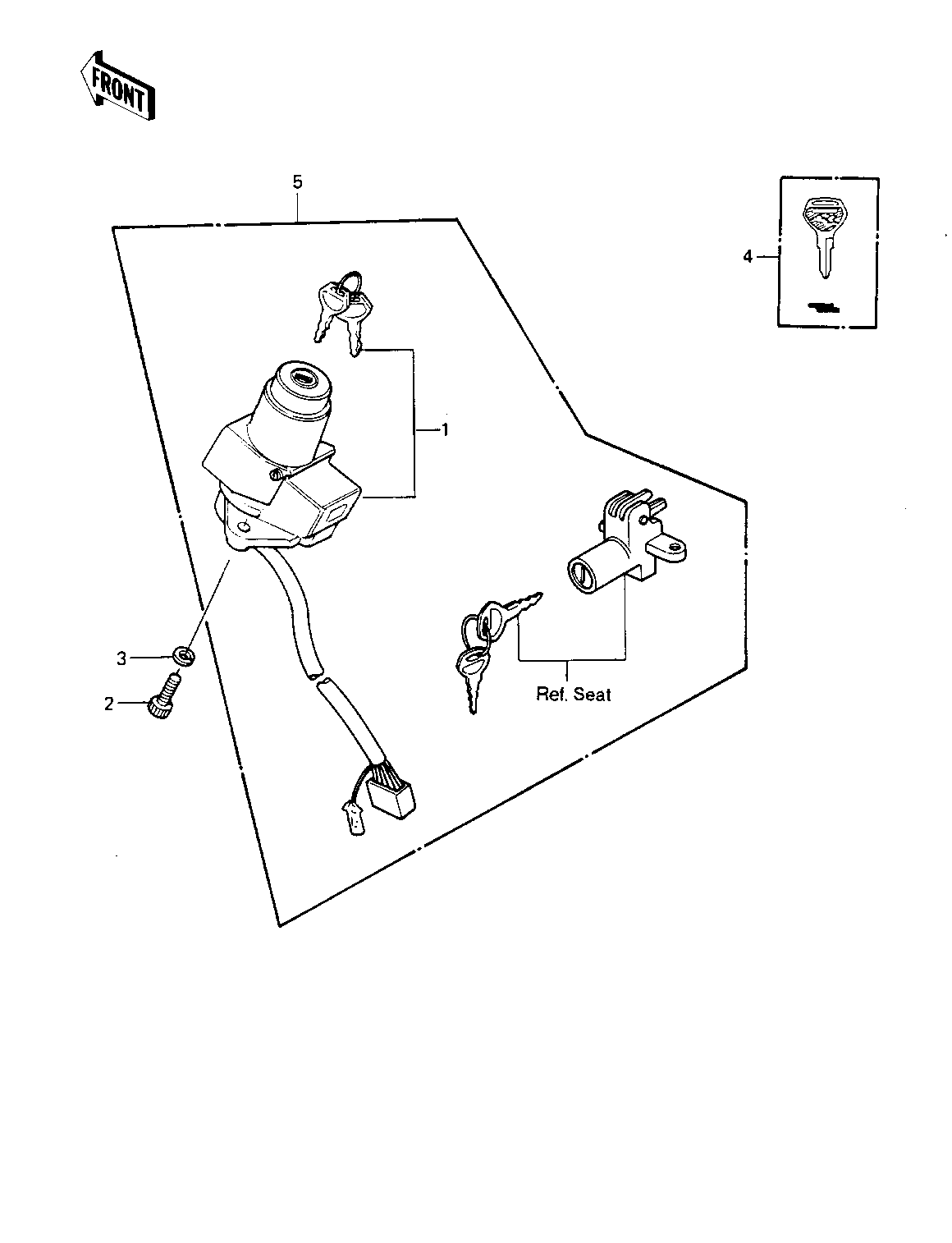

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH-ASSY-IGNITION 1 27005-5035 1
BOLT-SOCKET,6X16,BLAC 2 120S0616 2 KZ1000-P1/P2/P3/P4/P5
WASHER SPRING 6MM 3 461F0600 2 KZ1000-P1/P2/P3/P4/P5
KEY-LOCK,BLANK 4 27008-1103 AR
KEY-LOCK,BLANK 4 27008-1103 AR
SWITCH ASSY,ALL 5 27004-5168 AR
