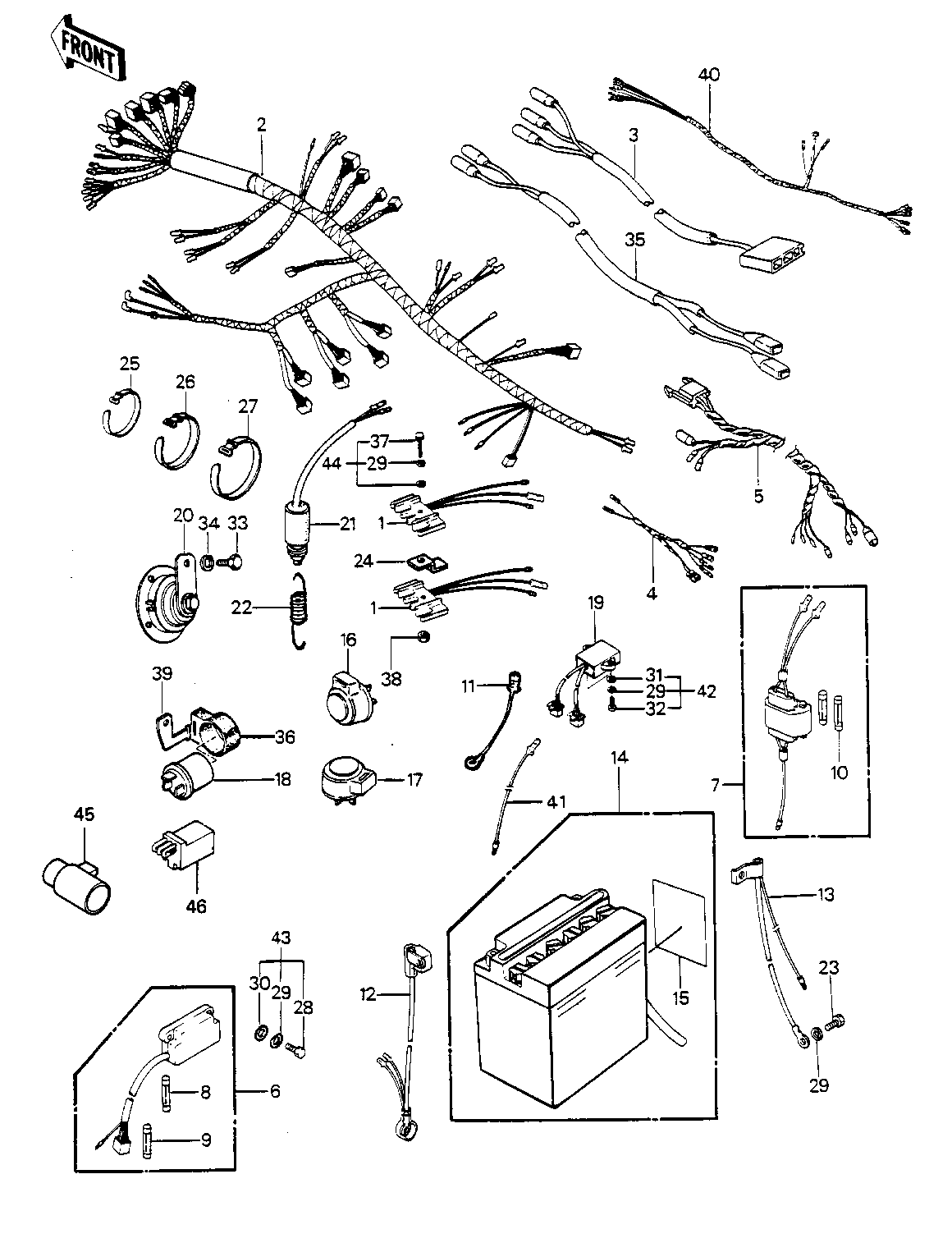

1982 Police 1000 - CHASSIS ELECTRICAL EQUIPMENT

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
REGULATOR,HAZARD 1 21066-024 2
HARNESS,MAIN 2 26001-1341 1 KZ1000-P1
HARNESS,MAIN 2 26001-4025 1 KZ1000-P1/P2
HARNESS,MAIN 2 26001-4025 1 KZ1000-P3/P4/P5
HARNESS,TAIL 3 26001-1343 1
WIRING HARNESS,TAIL 4 26001-1013 1
HARNESS,FAIRING 5 26001-1342 1 -F/NO. 500901
HARNESS, FAIRING 5 26001-4020 1 F/NO. 500902-
FUSE-ASSY 6 26004-1011 1
FUSE-ASSY,ACCESSORY 7 26004-1014 1
FUSE 10A 8 26006-003 5
FUSE,30A,L=25M/M 9 26006-1005 2
FUSE,10A,L=30M/M 10 26006-1002 3
WIRE-LEAD,ACCESSORY G 11 26011-1100 1
WIRE-LEAD 12 26011-1118 1
WIRE-LEAD,BATTERY,(-) 13 26011-1124 1
YUA BAT YB18L-A 14 26012-1039 1 YB18L-A
LABEL-WARNING,BATTERY 15 56040-1036 1 KZ1000-P1/P2
LABEL-WARNING,BATTERY 15 56040-1036 1 KZ1000-P3/P4/P5
RELAY-TURN SIGNAL 16 27002-011 1
RELAY,TURN SIGNAL 17 27002-016 1
RELAY,ALT FLASH (OPT) 18 27034-1001 1
SWITCH,TRN SGNL LAMP 19 27010-1048 1
HORN 20 27003-1047 1
SWITCH,BRAKE LAMP 21 27010-1019 1
SPRING,BRAKE SWITCH 22 92081-1366 1
BOLT,HEX HEAD,6MM 23 92001-137 1
BRACKET,HAZARD REGULA 24 11034-4163 1
BAND,MIDDLE 25 92072-031 3
BAND,WIRING HARNESS 26 92072-056 2
BAND,LONG 27 92072-032 2
BOLT 6X22 28 112B0622 2 KZ1000-P1/P2/P3
WASHER SPRING 6MM 29 461F0600 6 KZ1000-P1/P2/P3
WASHER SPRING 6MM 29 461F0600 1 KZ1000-P4/P5
WASHER PLAIN 6MM 30 411B0600 2 KZ1000-P1/P2/P3
WASHER PLAIN 6MM 31 410B0600 2 KZ1000-P1/P2/P3
SCREW PAN HEAD 6X20 32 220B0620 2 KZ1000-P1/P2/P3
BOLT-SMALL-UPSET,8X16 33 115G0816 1 KZ1000-P1/P2/P3
BOLT-FLANGED 33 130D0814 1 KZ1000-P4/P5
WASHER SPRING 8MM 34 461F0800 1 KZ1000-P1/P2/P3
WIRE-LEAD,TURN SIGNAL 35 26011-1148 1
RUBBER,RELAY HORN 36 27035-001 1
BOLT 6X35 37 110R0635 1 KZ1000-P1/P2/P3
NUT 6MM 38 312B0600 1
BRACKET,OUTAGE SWITCH 39 32060-014 1
HARNESS,SIREN 40 26001-1344 1
WIRE-LEAD,PRST LAMP 41 26011-4010 (1
SCREW-PAN-WSP-CROS 42 225B0620 2 KZ1000-P4/P5
BOLT-UPSET-WSP 43 187B0622 2 KZ1000-P4/P5
BOLT-UPSET-WSP 44 187B0635 1 KZ1000-P4/P5
RELAY-ASSY 45 27002-1051 1 KZ1000
DIODE 46 49018-1052 1 KZ1000
